Specification Description
Approximate Machine Age: 1996
Swing Over Bed / Cross Slide 10.0"
Maximum Turning Diameter: 8.25"
Max Turning Length: 14.00"
Z Axis Travel 14.0"
X Axis Travel 10.0"
Spindle Speeds: Two speed ranges 50-5000 RPM
Spindle Motor: 10 HP
Spindle Nose A2/5
Spindle Bore: 2.0"
Max Bar Size 1.625"

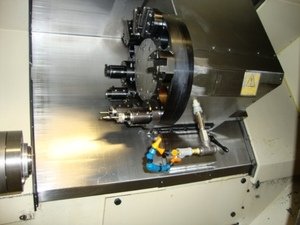

Turret Stations: 12
Rapid Travels: X and Z
Dimensions: 72" x 90" x 90"
Approximate Weight: 6,500 LBS
Equipped With:

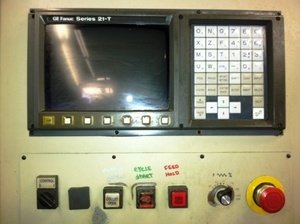

Fanuc 21TB Control

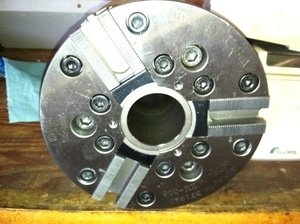

6" 3 jaw chuck
Collet chuck 16C
large amount of Collets
large amount Turret tooling
All Avilable Tooling and Manuals
(NO TAIL STOCK)
