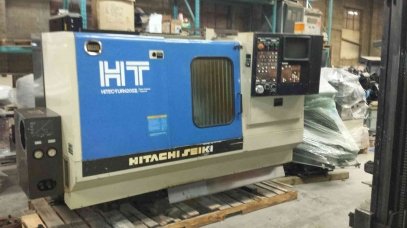

USE CNC LATHE HITACHI SEIKI -Hitec-Turn 20SII 2003
con control numerico
Super Productive Turning Cell 2003
Mfg.: Hitachi Seiki (Mori Seiki)
Model: HT2003 (manufactured in Japan )
Control Gear
Power Supply: 200/220 V
3 Phase 50/60 Hz 22 KVA
Control Circuit: A/C 100 V, DC 24 V
Specifications
Swing over Bed - 17.7"
Maximum Shaft Length - 23"
Max Turning Diameter - 8"
X-Axis Travel - 8.5"
Z-Axis Travel - 15.75"
Spindle Speed - 20-5,000 RPM
Spindle Drive Motor - 15 HP
Bar Work Capacity - 2.0"
Spindle Nose - A2-6
Machine Dimensions: 97 inches long x 76 inches wide x 72 inches high
Machine Weight: 9,000 lbs. approximately
Equipped with:
SEICOS Multi CNC Control
10-station Turret
8 inch Chuck Collet Closer
Chip Conveyor, Mini-Tote from Mayfran International
Mechanically in good condition, however controls
SPECIAL PRICE USD $ 9,500
