Hitachi Seiki Model HT-40S CNC Lathe, Mfg. 1989, 24" 3-Jaw Power Chuck, 40 HP, 10 ATC, Tailstock

Specifications:
Swing 27.6”
Maximum Machining Diameter 17”
Distance Between Centers 50.6”
Maximum Machining Length 43.3”
Spindle Speeds 20 – 1,800 RPM
Main Motor 40 HP
Spindle Nose A2-11
Hole Thru Spindle 4.72”
Turret 10 Tools
X-Axis Travel 13”
Z-Axis Travel 44.1”
Tailstock Quill Diameter 4.3”
Quill Travel 4.7”
Tailstock Taper 5 MT
Approx. Floor Space (L x D x H) 160” x 98” x 92”
Approx. Weight 18,700 lbs.
Equipped With:

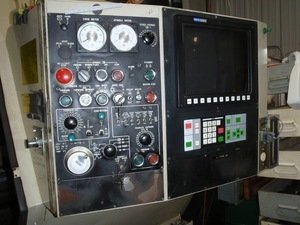

- Yasnac LX-3 (Seicos L-multi)

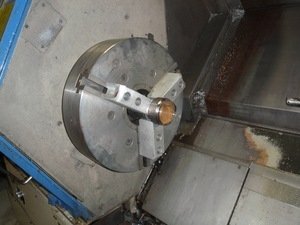

- 24” 3-Jaw Power Chuck with 6.5” Hole
- Chip Conveyor

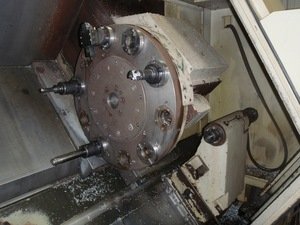

- 10 Position Turret
- Turret with Misc. Tooling (Boring Bars, Sqaure Tooling, Chuck Jaws), KV Style Tooling
- All Available Manuals

160" x 98" x 92"

18,700 lbs
