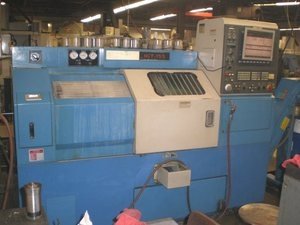

Collet Chuck, Programmable Tool Eye, Programmable Tailstock Body & Quill, Mayfran Chip Conveyor (Right Side Exit), Auto Parts Catcher
Specifications:
Chuck Size 8"
Max Diameter Bar Capacity 2"
Max Swing Over Bed 17.32"
Max Turning Diameter 10"
Distance Between Centers 25"
Max Machining Length 19"
Spindle Motor 20 / 15 HP AC
Spindle Speed 45 - 4500 RPM
Spindle Bore 2.44"
Spindle Nose A2-6
Tools 8
Rapid Traverse Rates 1181 IPM
X-Axis Travel 7.10"
Z-Axis Travel 20.10"
Tailstock Taper MT#4
Machine Dimensions (L x W x H) 101.1" x 60.2" x 72"
Machine Weight 9261 lbs.
FEATURES:
SEIMENS HITROL 840C CNC CONTROL
12" Color CRT
Conversational Programming
Collet Chuck
Programmable Tool Eye
Programmable Tailstock Body & Quill
Mayfran Chip Conveyor (Right Side Exit)
Auto Parts Catcher
