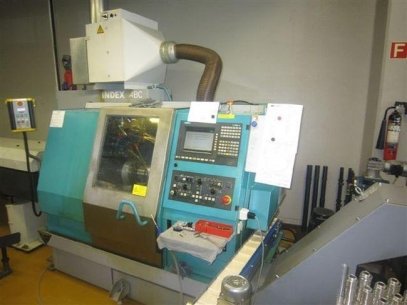

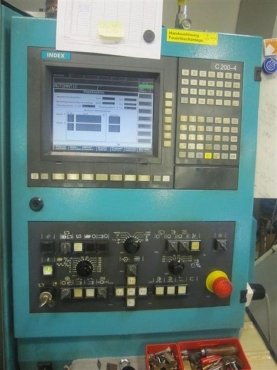

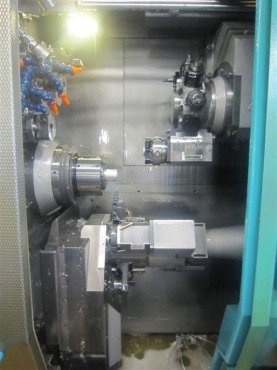

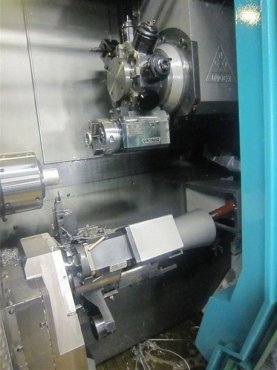

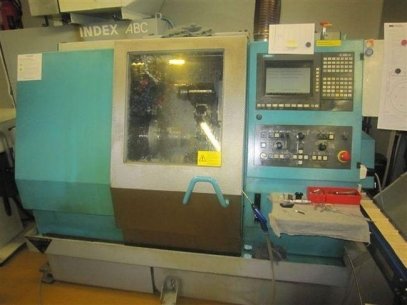

Make INDEX Type ABC Speedline control CNC INDEX C200-4 (Siemens Sinumerik 840C) serial number 401230 spindle bore 60 mm spindle positioning, Wegschritt 0.00035 Slide 1: Longitudinal travel (X-axis) 90 mm Cross travel (Z-axis) 280 mm slide 2: Longitudinal (X-axis) 81 mm cross travel (Z-axis) 80 mm Turret slide: 2 No. of positions turret 1 7 + (1x synchronous) Number of positions turret 2 6 spindle speeds: stepless up to 5000 rev / min spindle: 5 x spindle (mobile) 2 x Power supply 50 Hz 3x 380 Volt Spindle motor 13 kW Machine weight about 2600 kg Various accessories: collet lighting coolant system coolant / Nebelabsaugung splash cabin lubrication C axis interpolation parts conveyor belt chip conveyor reseating back working spindle
