Chuck size [mm] Spannzange
Turning diameter [mm] 200
Turning length [mm] 400
Spindle bore [mm] 60
set-up measurements LxWxH [mm] 2.800 x 2.200 x 2.050
Speed range [1/min] 6.000
Weight ca. 5.500

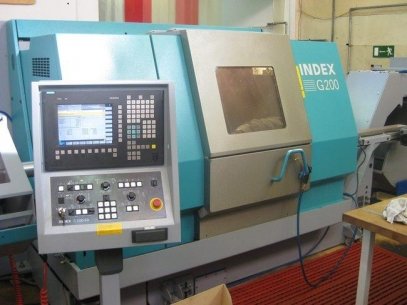

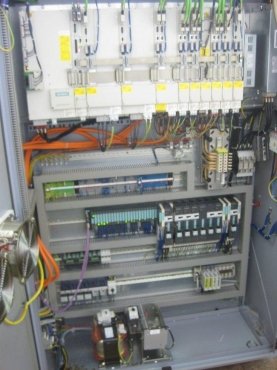

Control: Index C200-4D
Configuration/additional information
main spindle D60
power (100 / 40 % CD) 20 / 29 kW
torque 95 / 140 Nm
turning speed 6.000 r/min
spindle holder diameter outside 140 mm, inside 85 mm
bar capacity max. 60 mm
c-axis at main spindle
counter spindle D60
power (100 / 40 % CD) 13 / 22 kW
torque 61 / 105 Nm
turning speed 6.000 r/min
spindle holder diameter outside 140 mm, inside 85 mm
bar capacity max. 60 mm
rapid traverse 30 m/min
c-axis at main spindle
cooling lubricant trough counter spindle
stop device D60

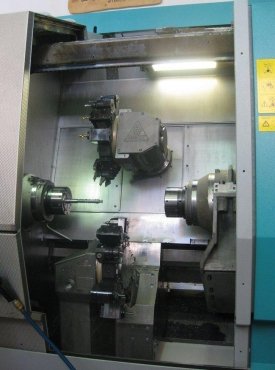

cross slide I X,Y,Z,B
travel (X/Y/Z) 155 / +/-60 / 590 mm
turret head I with 14 stations on cross slide I
tool holder accord. to DIN 69880 -25 x 48 mm
tool drive unit with two couplings
- power (25% CD / n=4.500) 5,5 kW
- turning speed max. 6.000 r/min
- torque max. 15 Nm
cooling pressure connection
cross slide II - X,Z
turret head to the right
travel (X/Z) 105 / 400 mm
turret head II with 14 stations on cross slide II
tool holder accord. to DIN 69880 -25 x 48 mm
tool drive unit with one coupling
- power (25% CD / n=4.500) 5,5 kW
- turning speed max. 6.000 r/min
- torque max. 15 Nm
cooling pressure connection
configuration / equipment
thread cutting without compensating chuck
electr. shaft for spindles and drive units

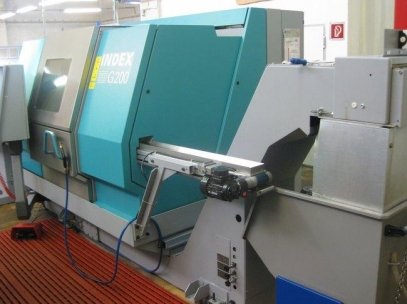

portal removal device with gripper
conveyor belt clock controlled
slat band chip conveyor, discharge hight 1.250 mm
cooling lubrication pump 7 / 18 bar with 60 / 20 l/min
Transmit- / Tracyl function to C200-4D incl. milling
of cylinder tracks on girthed area and abutting face
Unimag interface for bar feeder magazine

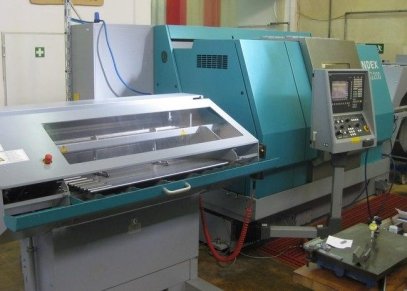

short bar loading IRCO (1,5m)
