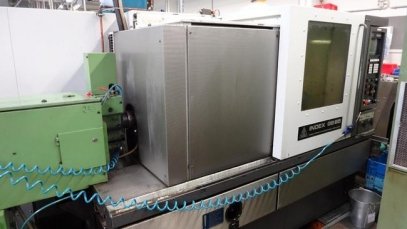

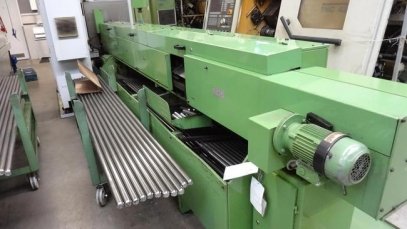

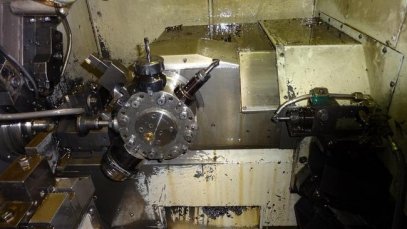

Control INDEX multiprocessor CNC with operator guidance-diameter programming cutting tool compensation memory expansion SPK 1.3 Cylinders D 65 mm compressive stress speed range 50 - 5000 U / min, 8-position turret tool holder holes D 30 mm X-travel -2 mm + 18 mm z-travel 200 mm spacing spindle head / turret up to 300 mm operating Qürschl. Q1-Q4 in X max 70 mm cross slide max 160 mm rapid traverse up to 7 m / min synchronous equipment in the turret with chuck for Abgreiffutter ABC back working on stationary tools workpiece portal buyers device workpiece transfer to the outside workpiece handling user-programmed interface turning center altitude. Floor 1,010 mm Overall height 1,700 mm 2,300 mm x 1,000 mm footprint weight lathe 3 to. Condition very well maintained INDEX charging IEMCA TS 560/33 P Bauj 1991 The machine can be demonstrated under power. Runs with cutting oil!
