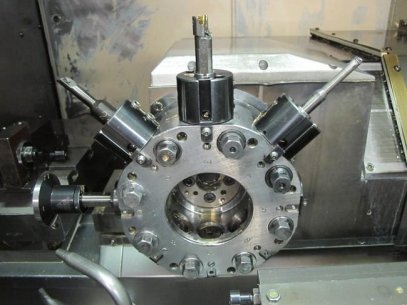

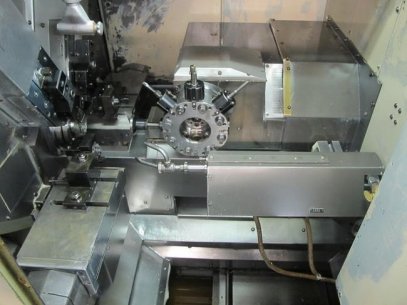

Range: max. Material diameter (bar diameter): 65 mm Spindle: Oe Kraftspannuing with SWM hollow clamping cylinder max. First stroke Hollow clamping cylinder for collet: 6 mm 2 Cylinders for collets and chucks: 35 mm piston surface compressive stress at 130 cm piston surface tension at 120 cm maximum. Pressure: 45 bar max. Speed: 5000 min-1 Collet: Tension of the pressure tube: 2.5 mm chuck max. Jaw: 4 mm outer diameter of the chuck: 160 mm Main drive (direct drive AC motor with adjustable) max. Power at the spindle at 100% duty cycle: 18 kW max. Power at the spindle at 60% duty cycle: 23.5 kW variable number of selectable speeds for each work cycle: any of the work spindle speeds: 50 - 5000 min-1 max. Torque at 100% duty cycle: 200 Nm max. Torque at 60% duty cycle: 262 Nm revolver cross slide: number of tool holder holes 8 turret diameter (square turret): 180 mm Mould cavity: D = 1 1/4 "Entrieglungsweg the turret: includes 4 mm switching time turret unlock-turned-lock: 0.5 sec .. max longitudinal travel (Z): 200 mm Max cross travel (X). -2 to +18 mm max thrust (Z). 12,000 N maximum thrust (X). 4000N Rapid traverse speed: (Z) & (X) 7 m / min distance chuck turret: 100-300 mm Qürschlitten. max commute: (X): 70 mm max thrust. X): 6500 N Rapid traverse (X): 7 m / min distance clamping work spindle: 5 [...Technical data truncated]
