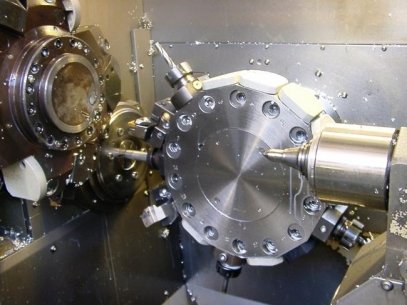

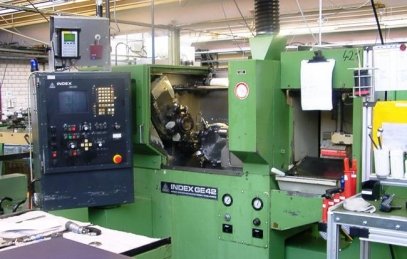

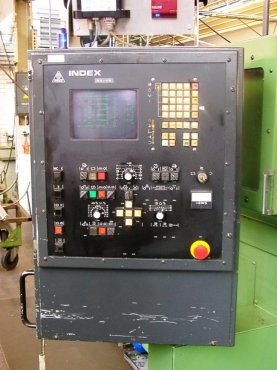

CNC Lathe: Index Type: GE 42 Control: Index S3TT Tool: VDI 30 Year: 1985 Accessories: - Collet chuck 173 E - bar feeder - Chip conveyor - Tailstock The machine is connected and can power be inspected and approved Technical Data Workspace material passage in bar work: max. 47 mm swing diameter: max. 370 mm turning diameter max. Slide 175 mm revolver 1 in X-direction: up. 150 mm Z axis: max. 400 mm turret 2 in X-direction: up. 120 mm in Z-direction: up. 215 mm gun turret 1: 14-station Turret 2: 6-station turret bore holes for ZylinderschaftDIN 69880-30 x 55 rapid traverse in X and Z axis: max. 10m/min spindle spindle head centering diameter 140 mm, cylindrical Variable speed direct drive input: 40 to 5000 r / min 2 stage gearbox normal runner: 31.5-5 [...Technical data truncated]
