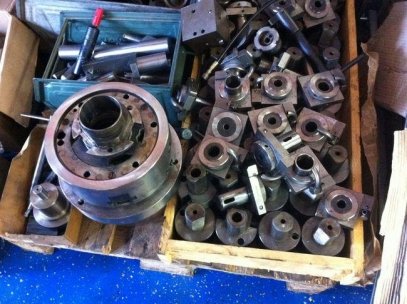

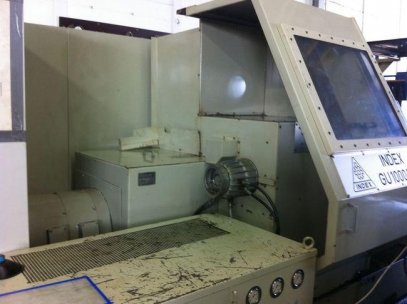

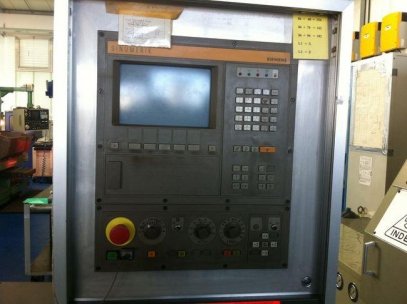

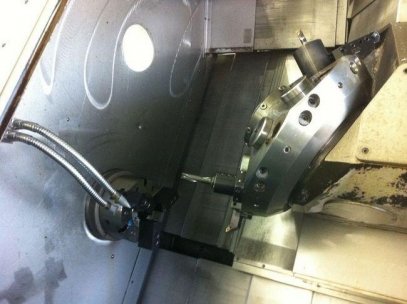

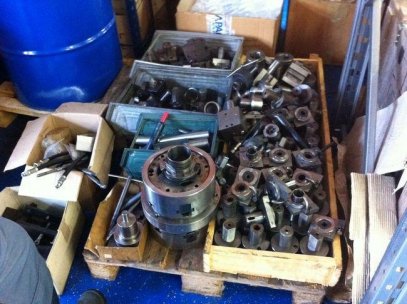

-CNC Lathe-Year: 1977 Manufacturer: INDEX Type: GU 1000 NC DC drive main drive (direct drive) Control: Siemens 810-Specifications: Clamping range Pliers Voltage:-Largest material bore: 65 mm collets Crawford D 285 INDEX B 60 (to average 60) feed voltage:-Largest Swing over bed: 560 mm tension between centers:-Largest Swing over saddle: 315 mm-growing spur center:-flange G 17 321-Morse taper: MK 5-spindle, main drive spindle bearing inner diameter: 110 mm Spindle bore: 75 mm diameter for centering feed-or. Chuck: 185 mm material tension: hydraulic drive motor: DC reverse drive input power: 1.3 to 37 kW, speed range: 25 to 2500 min-1 turret No. of tool-mounting holes: 16 (2 x 8) distance of tool-mounting holes in the X direction: 86 mm Type of Tool: Straight shank with VDI 3425, size 20-time set at 1 station: 1.5 s switching time at 4 stations: 2.5 s-weights and machine with the main drive , coolant tank and covers floor area: 3280 x 1645 mm Height: 2272 mm Weight: 6750 kg hydraulic aggregate floor area: 1250 x 710 mm Height: 910 mm Weight: 480 kg

-
