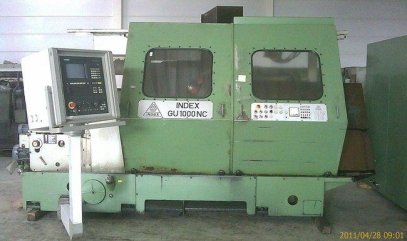

Manufacturers INDEX Type GU 1000 CNC control SINUMERIK 810 T clamping range: Pliers voltage: maximum material passage 65mm collets Crawford D 285 Index B60 chucking. Largest Swing over bed 560mm tension between sharp largest swing slide over bed 315mm cultivation of spur center flange G17321 Morse taper MT5 spindle, main drive spindle bearing inner diameter 110mm spindle bore 75mm centering for chuck or chuck 185mm material tension hydraulic drive motor DC reverse drive power kW 1.3 to 37 rpm range 25-2500 / 31.5 to 3500 / 40-4000 spindle speeds 41 Kreutz sled sled paths R1-R2 from the reference point from 290-100 mm in the X direction in the direction of X mm X mm 380-1090 50-50 in the direction toward X mm 60/120-10 XMR distance 280mm 635mm spacing distance ZMR1 ZM [...Technical data truncated]
