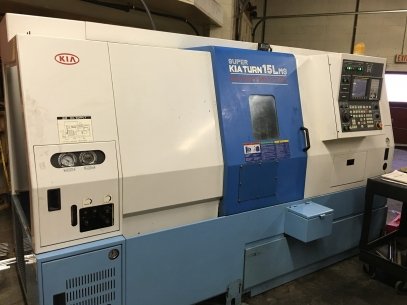

1 No. Used Kia Turn CNC Turning Center with Sub-spindle and Live Tool.
Model 15LMS

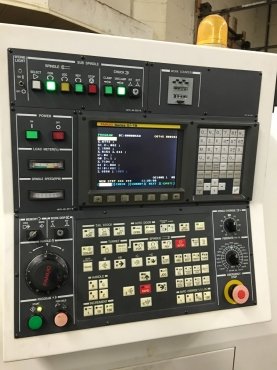

CNC Control: Fanuc Oi-TB
Year: 2005 Approx. as per seller
Spindle Cutting Hours Very Low: Only 400 Hours! Machine was not put in operation by the company and was sitting for years.
Specifications:
Specifications (as per manual, Subject to Verification)
Swing over bed : Ø550mm
Max. machining dia : Ø255mm
Swing over cross slide : Ø350mm
Max, turning length : 530mm
Bar Capacity : Ø38mm
Speed Main Spindle : 5,000 rpm
Speed Sub Spindle : 6,000 rpm
Nose : Main A2-5 and Sub Spindle is Flat Ø115mm
No. of Tools : 12
Spindle Motor : Main 15/10 HP and Sub Spindle 5/3 HP
Electric Power Supply : 30 KVA
Weight : 4,300 Kg
Tooling details
Main Spindle 16C Dead Length Collet Chuck
Sub Spindle 5C Dead Length Collet Chuck
Main Spindle 3 Jaw Chuck
Sub Spindle 3 Jaw Chuck
All tool holders as mounted on turret
Qty of 2 X-axis live holders
Qty of 1 Y-axis live holders
Miscellaneous Aluminum Pie Jaws
Qty of 8 pcs 16C collets
