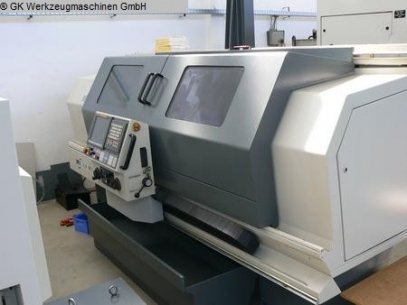

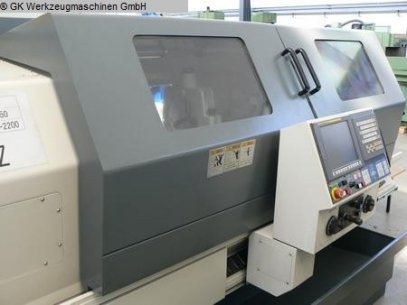

Unused CNC lathe with CNC control

main features:
-high speed
-high spindle torque
-big spindle bore
-automatic forced lubrication
-hardened and ground guideways
-brand-new design eterior
-CE certificate of TÜV Rheinland, Germany and ISO 9001 CQC, China

All machine functionalities will be checked and controlled before loading. The machines can be modified according to CE upon request.

warranty: none

turning diameter 500 mm
turning length 1430 mm
control Fanuc 0i-TC
max. swing over slide 280mm
bed width 400mm
spindle taper D8
spindle bore 82mm
spindle speeds 7-2200 1/min
tailstock quill diameter 75mm
tailstock quill stroke 150mm
taper of tailstock quill 5MK

3327x1749x1620mm

2700kg
