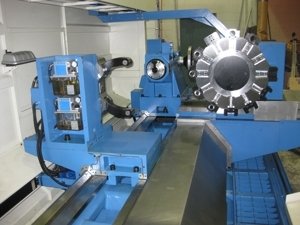

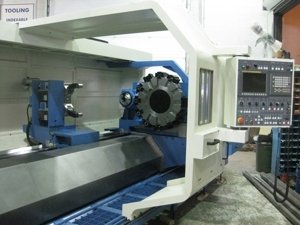

Ideal for OD machining of long rods, rolls, or shafts. Machine features patented 5 guide bedway for interference-free OD turning of long cylindrical workpieces. Workpiece may be supported by manual or hydraulic self-centering open steady rests mounted on the 2 rear tailstock ways while front 3 guideways support carriage as it passes along in front of workpiece. View attached link to video.

Specification Description
Control: Fanuc 0i-TD w/ Manual Guide i
Max. cutting diameter: 37.4"
Max. distance between centers: 157.5"
Width of bed: 39"
Travel X: 18.9"
Travel Z: 157.5"
Rapid traverse X: 5 m/min
Rapid traverse Z: 4 m/min
Spindle speeds: 450 RPM
Spindle nose: A2-15
Spindle bore: 9"
Tool turret - no. of pos.: V8-200 Hydraulic Turret - 8
Weight approx.: 44,000 lbs.

Equipped With:
Fanuc 0i-TD with Manual Guide-i 9" spindle bore Rear spindle flange for mounting of rear chuck V8-200 Hydraulic turret Schunk THL-5 Hydraulic self-centering steady rest - 50-310 mm capacity 2 manual steady rests 30-300 mm capacity w/ 80 mm quills Powered tailstock body and quill 8" tailstock quill diameter Linear encoders for X and Z axes Hydraulic disk brake for main spindle 2 front and rear chip conveyors and 2 chip carts Set of toolholders and bushings for turning, facing, and boring

44000 (LBS)
