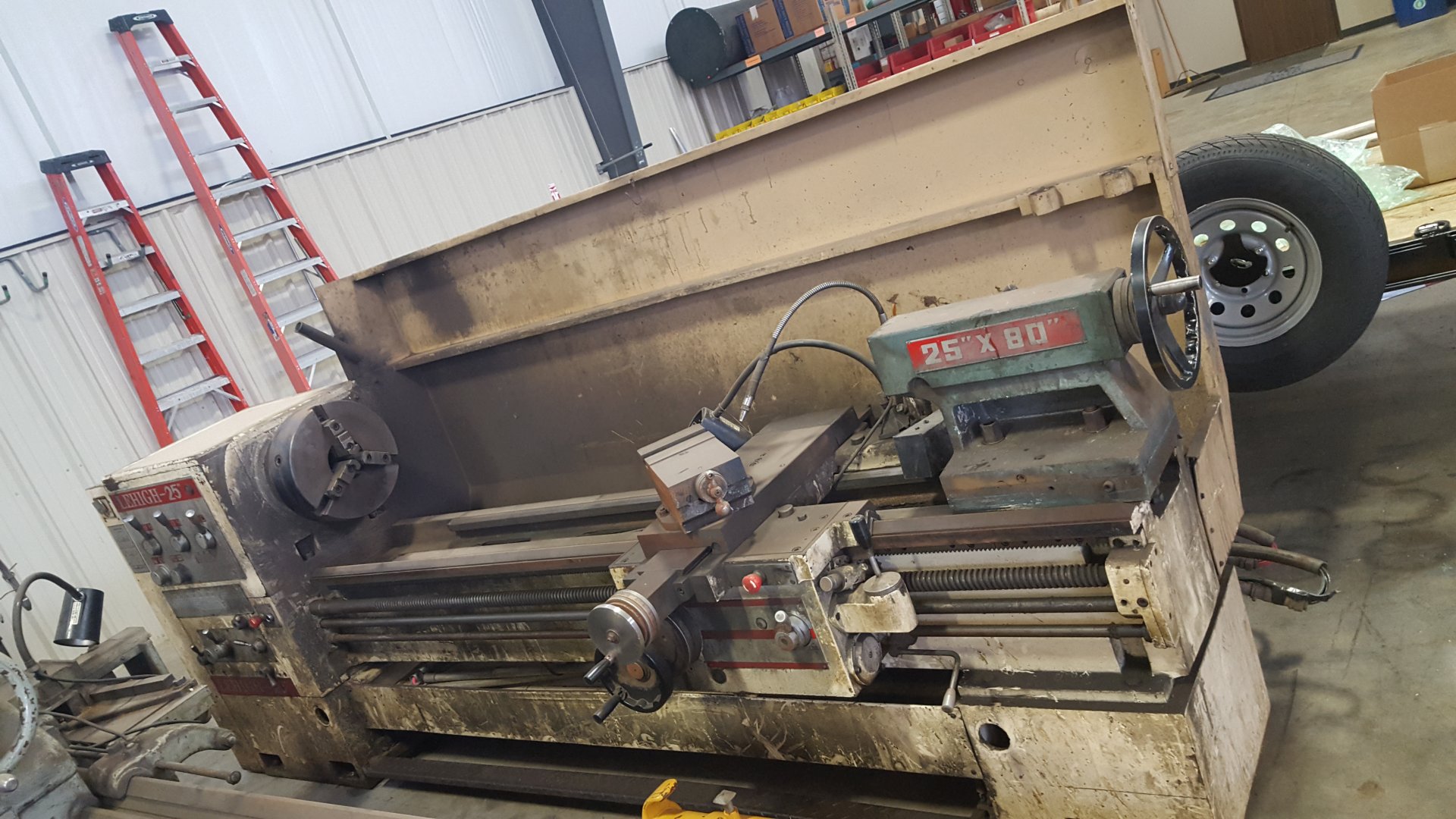

Lehigh 25"x 80" Gap Bed Lathe

Swing over bed: 25" (630 mm)
Swing over cross slide: 15" (380 mm)
Swing in gap: 33" (830 mm)
Distance between centers: 80"

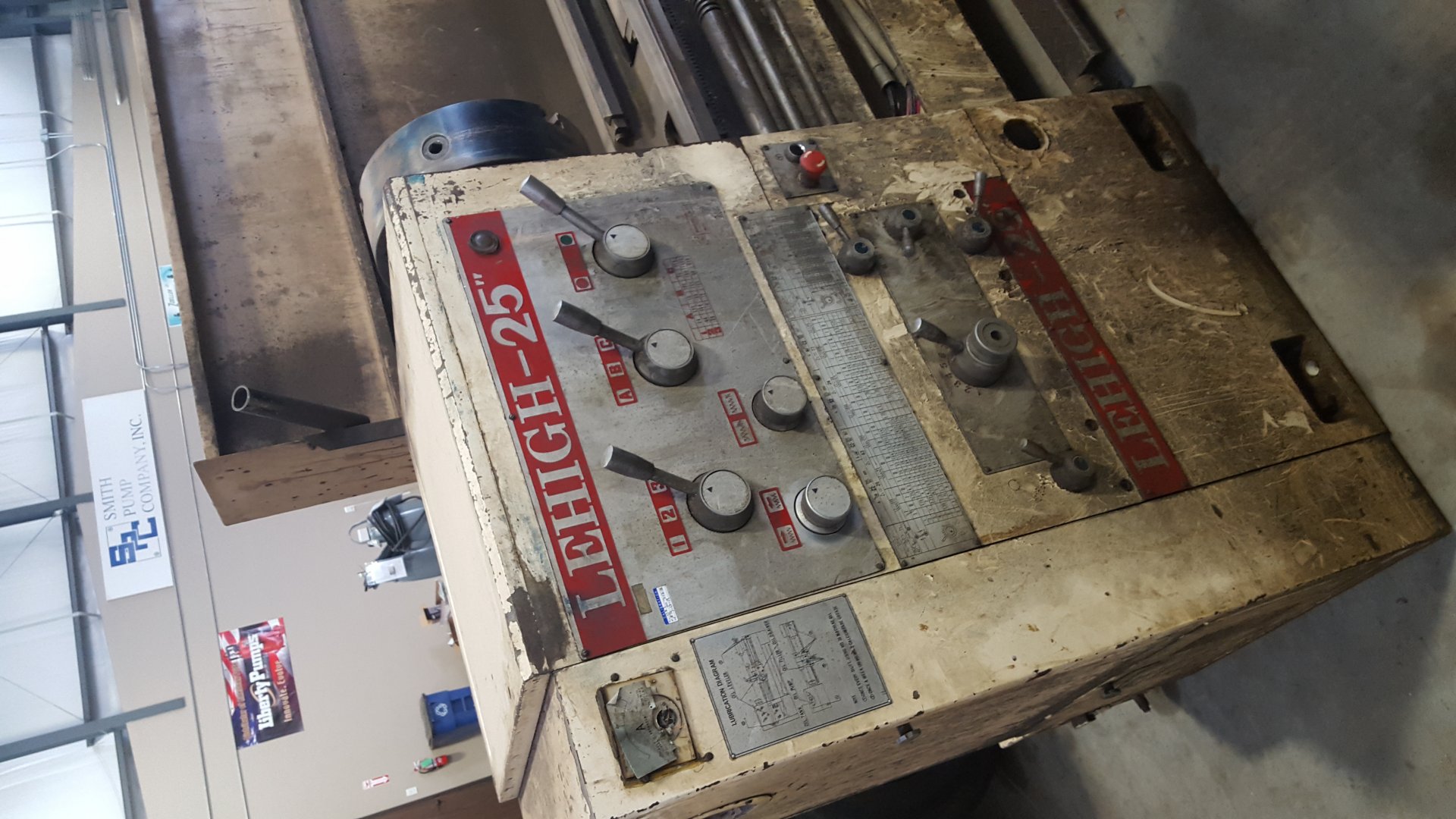

Headstock and Spindle
Spindle hole: 4-7/8" (120 mm)
Spindle nose: D1-11
Spindle center taper: MT #6
Spindle speed: 12-1000 RPM
Feeds and Threads
Longitudinal feeds: 0.0033"-0.063" / rev.
Cross feeds: 0.0011"-0.021" /rev.
Inch threads (30 kinds):2-24 TPI
Metric threads (57 kinds): 1- 192 mm
Modular threads (40 kinds): 0.25 - 48 mm
DP threads (37 kinds): 7 - 96 D. P.
Carriage and Cross Slide
Rapid longitudinal travel: 160 IPM
Rapid cross travel: 80 IPM
Travel of cross slide: 14"
Travel of the compound rest: 6.5"
Tailstock Quill diameter: 4" (100 mm)
Quill travel: 10" (250 mm)
Tailstock center: MT #5
Main drive motor: AC (15 HP/10 HP)/220V
Rapid motor: AC 1/3 HP
Coolant pump: AC 1/8 HP
