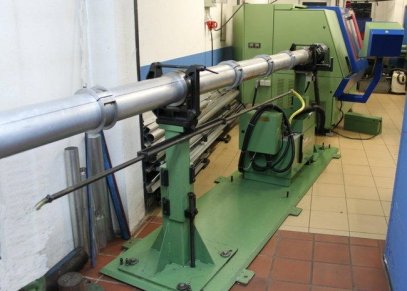

Max swing diameter over bed: 410 mm Swing over cross slide: 220 mm turning length: 495 mm bar capacity: X axis travel: 170 mm Z axis travel: 350 mm Spindle speed range: 100 - 6000 1/min lining Size: 130 mm Spindle motor power: 5, 5 KW Control: CNC MAHO Graziano 432 T Number of tool stations: 8 Tool System (VDI 4325 / 2 DIN 69880-20): 20 mm Machine Weight: 2500 kg RaumbedarfH x W x L: 1.6 x 1.97 x 2.1 m LNS bar feed Hydrobar 6:30 HS - 4.4
