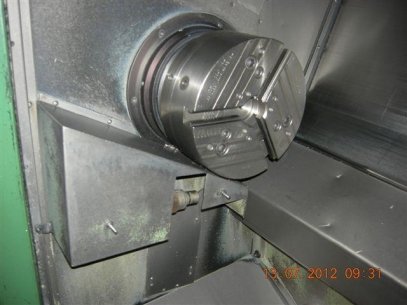

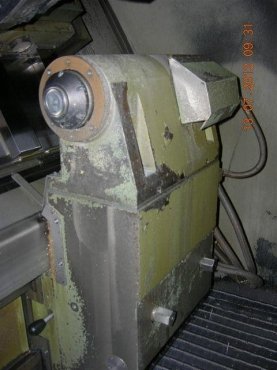

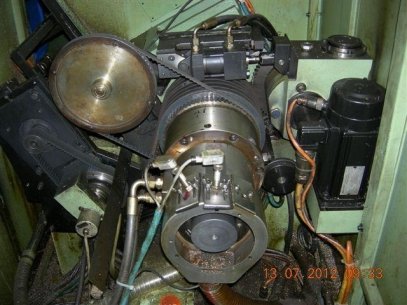

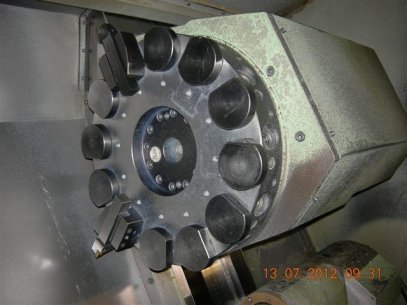

Turning diameter: max. 480 mm (over bed) Turning diameter: max. 420 mm (on slide) Center distance: 750 mm Spindle nose: ASA A2-6 "spindle bore: 63mm spindle ball diameter: 105 mm speeds: 2 speeds: 147 - 658 U / min (stage 1) speed: 780 - 3500 rev / min (stage 2 ) Spindle drive: 15.0 kW (continuous) power capacity: 22.5 kW (intermittent) X-axis speed: 10 m / min Z-axis speed: 12 m / min XZ-axis travel: 280 - 760 mm C-axis: 3rd axis, resolution 0 0001 degrees turret: electric / bi-directional (Sauter) Number of tools: 12 / VDI 40 Number of driven tools: 12 pinole: 90 mm Spindle stroke: 125 mm taper seat: MK 4 quill: 8000 N Installed capacity: up to 30 kW control. Phillips CNC 432 T operating hours: 48,000 h Condition: Good Weight: 6000 kg Space: 3000 x 2200 x 2000 mm Power: 38 kVA Accessories: power chucks SMW Autoblok GHDN 250, Div baking, chip conveyor. (discharge height: 1,050 mm), Div. tools, reinforced coolant pump, preparing for smoke extraction, manual operating hours: 48,000 h
