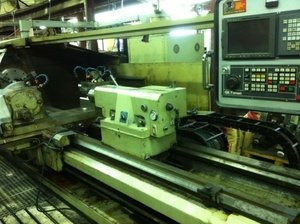

16" SMW BB400/140 Self-Contained Air Chuck, Manual Tailstock, Chip Conveyor, Four Gear Range Headstock, Heavy Duty Box Way Construction, CNC Control Retrofit in 1998, All Axis Motoros and Spindle Drive Replaced, Rebuilt Spindle Motor, Reconditioned X&Z-Axis Ballscrews, New Lube System
Specifications:
Chuck Size 16"
Max Diameter Bar Capacity 4.6"
Max Swing Over Bed / Carriage 30" / 18"
Max Turning Diameter 34"
Distance Between Centers 120"
Bed Width 23.6"
Spindle Speed 15 - 1200 RPM
Spindle Bore 4.63"
Spindle Nose A1-11
Spindle Motor 60 HP DC
Tools 8 (OD Front) + 4 (ID Rear)
Rapid Traverse Rates (X & Z) 400 IPM
X-Axis Travel 25.79"
Z-Axis Travel 123.5"
Tailstock Taper MT#5
Machine Dimensions (L x W) 320" x 190"
Machine Weight 18,800 lbs.
FEATURES:
GE FANUC 21i-T CNC CONTROL
9" Monochrome CRT
16" SMW BB400/140 Self-Contained Air Chuck
Chip Conveyor
Manual Tailstock
Four Gear Range Headstock
Heavy Duty Box Way Construction
CNC Control Retrofit in 1998
All Axis Motors and Spindle Drive Replaced
Rebuilt Spindle Motor
Reconditioned X & Z-Axis Ballscrews
New Lube System
