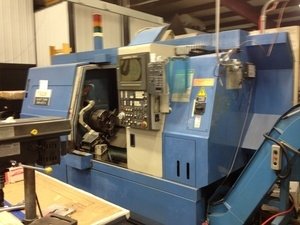

12" Hydraulic Chuck, C-Axis Milling Capability, 32 Tool Magazine, Programmable Tool Eye, Chip Conveyor (Side Exit), Auto Parts Catcher, Barfeed Interface, Three Gear Range Headstock, Slant Bed Box Way Construction, Three Color Tower Light
Specifications:
Chuck Size 12"
Max Diameter Bar Capacity 2.75"
Max Swing Over Bed 18.1"
Max Turning Diameter 11.8"
Max Machining Length 39.37"
Spindle Speed 4 - 2200 RPM
Spindle Bore 3.15"
Spindle Nose A2-8
Spindle Motor 30 / 26 HP AC
Spindle Torque 1148.1 ft. lbs.
Tools 32 (All Live)
Milling Speed 20 - 2000 RPM
Milling Motor 5 HP
Rapid Traverse Rates (X / Z) 393 / 590 IPM
X-Axis Travel 13.2"
Z-Axis Travel 40.47"
C-Axis Index .001 Degrees
Tailstock Taper MT#4
Machine Dimensions (L x W x H) 210.2" x 74.55" x 93.6"
Machine Weight 11,880 lbs.
FEATURES:
MAZATROL T32-3 CNC CONTROL
14" Color CRT
Conversational Programming
Graphic Display
12" Hydraulic Chuck
C-Axis Milling Capability
32 Tool Magazine
Programmable Tool Eye
Chip Conveyor (Side Exit)
Auto Parts Catcher
Barfeed Interface
Three Gear Range Headstock
Slant Bed Box Way Construction
Three Color Tower Light
