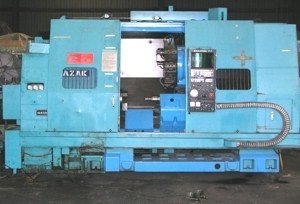

MAZAK SLANT TURN 40M 1500 Universal CNC SLANT BED LATHE

Specifications:
Model Slant Turn 40N MC (spindle orientation, 1 deg. indexing/live turret tools)
Serial number/Date of mfg58309/59-11 (1985)
CNC controlMazatrol T-1 Conversational Control
Swing over bed21”
Maximum diameter of shaft work13.5”
Center distance60”
X-axis travel19.50”
Z-axis travel61”
Rapid traverse rate400 ipm
Turret capacity15 tools (10 on turret OD, 5 on the face)
Tooling3 live turret tools, 2 boring bar holders, 4 O.D. turning tools, I facing tool holder
Live Tooling4HP DC, 100-2000 rpm
Spindle nose A-2-8
Chuck12” 3-jaw hydraulic with a 3” thru hole
Spindle bore3.15”
Spindle speeds4-2200 rpm
Main motor30 hp
Spindle speed ranges 3 ranges
Tailstock spindle taper MT No. 5
Tailstock quill diameter3.9”
Quill travel5.1”
Chip conveyorYes
CoolantYes
ManualsYes
ElectricsCurrently 440/
Machine dimensions126” x 176” x 103”
Machine weight15,500 lbs.

Equipped with: Fully automatic NC Tailstock, Chip Conveyor,

126 x 176 x 103"

15,500 lbs
