EIA/ISO Input Function, C-Axis Milling Capability, 8" Kitagawa B208 Hydraulic Chuck, Programmable Tool Eye, Programmable Tailstock Body & Quill, Jorgenson Chip Conveyor (Side Exit), Auto Parts Catcher
Specifications:
Chuck Size 8"
Max Diameter Bar Capacity 2"
Max Swing Over Bed / Carriage 20.9" / 15.74"
Max Turning Diameter 11.75"
Max Machining Length 20.78"
Spindle Motor 25 / 20 HP AC
Spindle Speed 35 - 5000 RPM
Spindle Bore 2.4"
Spindle Nose A2-6
Milling Motor 4.1 HP AC
Milling Speed 120 - 3000 RPM
Tools 12 (Live or Turning)
Rapid Traverse Rates 1180 IPM
X-Axis Travel 7.12"
Z-Axis Travel 22.75"
C-Axis Index .001 Degrees
Turret Index ( Single Step / Full)1.3 / 5 Seconds
Tailstock Taper MT#4
Machine Dimensions (L x W x H) 115.6" x 62.2" x 74.8"
Machine Weight 9700 lbs.
FEATURES:

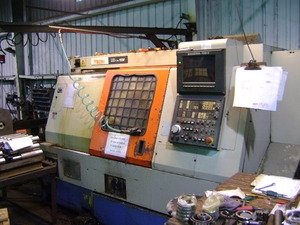

MAZATROL T-PLUS CNC CONTROL
Serial Number 104230
14" Color CRT
Graphic Display
Conversational Programming
EIA / ISO Input Function
C-Axis Milling Capability
8" Kitagawa B208 Hydraulic Chuck
Programmable Tool Eye
Programmable Tailstock Body & Quill
Jorgenson Chip Conveyor (Side Exit)
Auto Parts Catcher
