with Siemens Sinumerik 810 TF control
turning diameter: 500 mm
turning length: 2000 mm

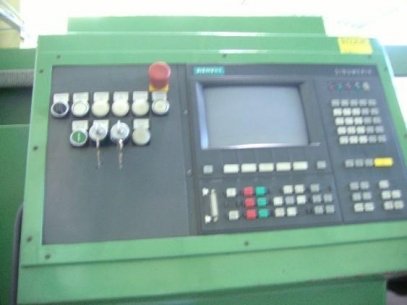

control: Sinumerik 810 TE
greates pass round over bed: 520 mm
turning speed: 20-2240 U/min
spindle bore: 71,5 mm
feed: x/y-Achse - 5-3200 mm/min
rapid traverse: 5000 mm/min
taper in main spindle metrical: 80
centre height: 250 mm
swing diameter over side rest: 280 mm
spindle taper: DIN 55022/8
tooltaper: 12
threading metrical: 0,1-20
total power requirement: 18,5 kW
weight of machine ca.: 4 t
dimensions of machine ca.: 6,0x2,20x1,85 m
