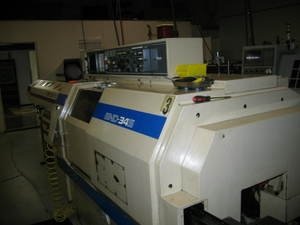

MIYANO BND-34S,FANUC OTC,1992,SUB-SPNDL,8 ST TRRT,5,000 RPM,LIVE TLS,COOLANT,BF
Specifications:
GENERAL SPECIFICATIONS AS PER BROCHURE

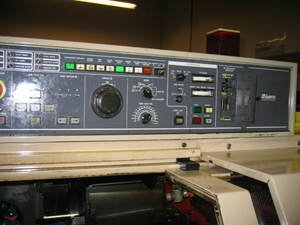

CONTROL: FANUC OTC
MAX BAR CAPACITY: 1 5/8"
MAX WORK LENGTH: 7"
VARIABLE SPEED RANGE: 170 TO 5,000 RPM
SPINDLE MOTOR (30 MIN. RATING): AC10HP (7.5kW)
TOOLING STATION: 8
MACHINE SIZE WITHOUT BAR GUIDE: 62" X 96" X 68"
WEIGHT (APPROX.): 8,000 LBS.
EQUIPPED WITH (MUST BE VERIFIED BY BUYER):

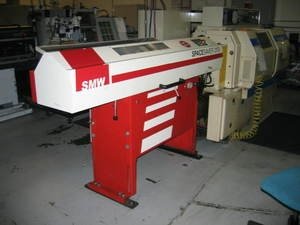

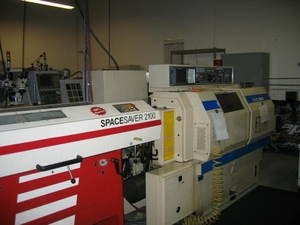

SMW Spacesaver 2100 Barfeed s/n 418
Turbo Chip Conveyor #6475-8659 s/n 347748
Parts Catcher
Sub-Spindle
(1) Live Cross Drill
22D Collet Chuck (Main)
Misc I.D. & O.D. Tool Holders
2 Double ID Holders
20 Count of 22D Collets
Operations/Programming/Control Manuals
