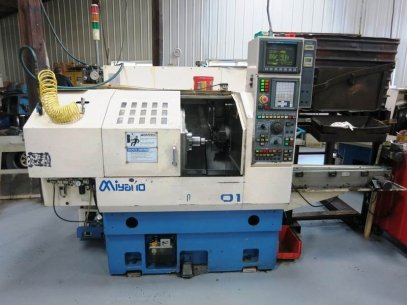

MIYANO MODEL LZ-01 2-AXIS TURNING CENTER WITH AUTO LOAD/UNLOAD SYSTEM
Specifications:
MIYANO MODEL LZ-01 2-AXIS TURNING CENTER WITH AUTO
LOAD/UNLOAD SYSTEM
SERIAL NUMBER LZ010400 NEW 1998
GENERAL SPECIFICATIONS:
Max. turning diameter 2.76"
Max. turning length 3.15"
Power chuck 6" hydraulic chuck
Collet chuck 2.76" max. diameter
Spindle motor (cont./30 min. rating) VAC 5.5kW : 7.5HP /
7.5kW : 10 HP
Spindle speed 60 - 6000 RPM
Slide traverse:
X-axis 9.45"
Z-axis 7.48"
No. of tool stations 8
Indexing time 0.3 sec/pos.
Max. part size 2.76"D x 3.15"L
Max. part weight 1.54 Lbs x 2
Part service time Min. 4 sec. (with collet chuck)
Machine size (W x L x H) 55" x 65" x 65"
Weight (including NC unit) 6,500 Lbs.
EQUIPPED WITH:
Fanuc 21T CNC control
Automatic load/unload system with Parts Conveyors, Top entry, Bottom exit
Expanding Mandrel Workholding with Hydraulic Cylinder
8 Position Turret
Splash Guards & Chip Conveyor
Marposs Gauging Station
