Specification Description
Approximate Machine Age: 1998
Swing Over Bed: 20.28"
Maximum Turning Diameter: 16.14"
Max Turning Length: 21.65"
Spindle Speeds: 30-3500 RPM
Spindle Motor: 15/10 HP AC
Spindle Nose A2-6
Spindle Bore: 2.5"
Max Bar Size 2.56"

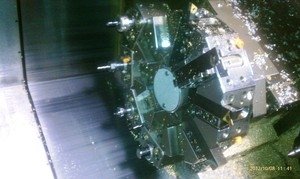

Turret Stations: 10
Turret Index Time 0.7 Sec
Z- Axis 22.44"
X- Axis 9.25"
Rapid Travels: X and Z 1181 ipm

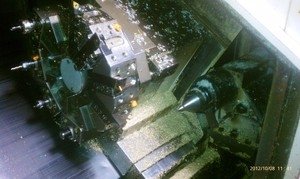

TAILSTOCK SPINDLE TAPER/TRAVEL MT #4 / 4.72"
TAILSTOCK SPINDLE DIAMETER 3.34"
TAILSTOCK BODY TRAVEL 18.9"
Dimensions: 116" x 67" x 66"
Approximate Weight: 7,000 Lbs
Equipped With:

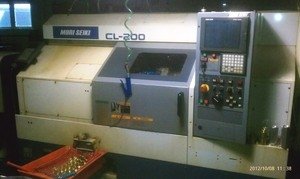

MORI MSC-803 CNC CONTROL WITH 9" CRT SCREEN
RS-232C PORT INTERFACE FOR DNC OPERATION

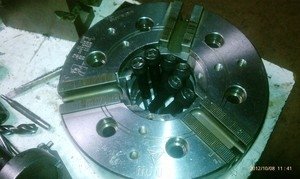

8.00" 3-JAW HYDRAULIC CHUCK WITH THRU HOLE
TURBO CHIP CONVEYOR
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING/ENCLOSURES
Collet chuck and collets

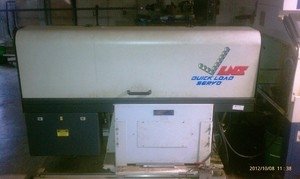

Bar feeder LNS Quick Load Sevro
All Availble Tooling
All Available Manuals
