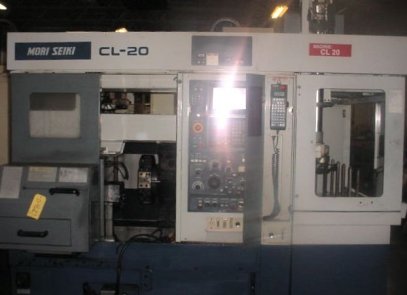

Mori Seiki CNC Lathe Model: CL20B
New 1996 s/n 611
with Automatic gantry loading system
& Fanuc 18 T CNC Control
Specifications:
Mori Seiki CNC Lathe Model: CL20B
New 1996 s/n 611
with Automatic gantry loading system
& Fanuc 18 T CNC Control
Specifications:
Swing Over Bed 20.3”
Max Turning Diameter 16.1”
Max Turning Length 11.4”
Bar Work Capacity 2.0”
X-Axis 9.3”
Z-Axis 12.2”
Spindle Nose A2-6
Spindle Speed 45-4,500RPM
Tool Station 10
Rapid Travels X-Axis 1181 IPM
Rapid Travels Z-Axis 1181 IPM
Main Motor 15/10
Machine Weight 5,390 lb.
Equipped with
10 Position Rotary work stocker
Automatic gantry loading system
8” Hydraulic chuck
Tool Probe
Parts catcher
Chip conveyor (Rear disposal type)
Work counter
Tool holders
All Available Manuals
Chip Conveyor
