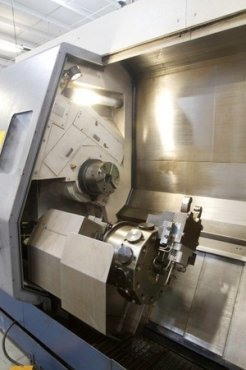

Chuck Size 8"
Max Diameter Bar Capacity 2.5"
Max Swing Over Bed / Carriage 33.4" / 17.3" - 23.6"
Max Turning Diameter / Lower Turret 21.6" / 11"
Max Machining Length 40.1"
Distance Between Spindles 50.4"
Spindle Motor 20 / 15 HP
Spindle Speed 4500 RPM
Spindle Bore 2.9"
Spindle Nose A2-6
Tools 120
Rapid Traverse Rates (X & Z / Y) 945 / 630 IPM
Milling Motor 25 / 20 /15 HP
Milling Speed 8000 RPM
Sub Spindle Chuck Size 6"
Sub Spindle Motor 10 / 7.5 HP
Sub Spindle Speed 6000 RPM
Sub Spindle Bar Capacity 1.7"
Lower Turret Tools 12
Lower Turret Milling Motor 10 HP
Lower Turret Milling Speed 4000 RPM
Tool Change Time (T-T) 1.6 Seconds
X-Axis Travel / Lower Turret 22.2" / 6.1"
Z-Axis Travel / Lower Turret 42.4" / 36.7"
Y-Axis Travel +/- 3.1"
B-Axis Rotation +/- 120
B-Axis Index .001 Degrees
C-Axis Index (Main & Sub Spindle) .001 Degrees
Gear Ranges 2
Tool Change Time (T-T) 1.6 Seconds
Max Tool Diameter 3.5" / 4.9"
Max Tool Length 11"
Max Tool Weight 15.4 lbs.
Machine Dimensions (L x W x H) 254" x 126" x 138"
Machine Weight 26,400 lbs.

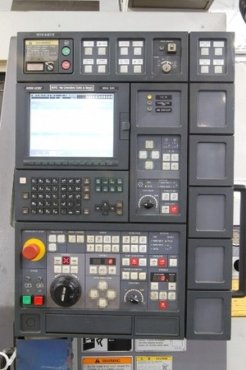

Equipped with Fanuc MSG 501 CNC Control
SLU-2 Programmable Steady Indexable on Lower Side

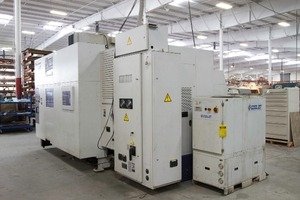

Cool Jet High Pressure Through Spindle Coolant System
320 Meters
Mapps Programming
Polar Coordinate Interpolation
Cylindrical/Helical Interpolation
Thread Cutting Retract
Riggid Tapping Mill Head
Balanced Cutting
Second Spindle Orientation
Custom Macro B
Interface Check for the Turning Area Axis Recomposition
720 Offsets
8" Chuck Front 6" Sub 3 Jaw Hydraulic Chucks

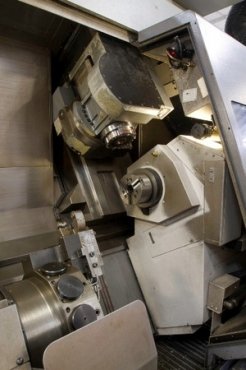

C,Y, 7 B-Axis Milling Capability
120 ATC Magazine
Renishaw Probe
Tool Presetter Front and Rear
Low Pressure Detecting Switch
Auto Power Off
Chip Conveyor/Mist Buster Air Filtration
