Technical details
Swing diameter over bed 1190 mm
Swing diameter over cross slide 960 mm
Turning diameter max. 350 mm
Turning length max. 570 mm
Bar capacity max. 67 mm
X / Y / Z axis 405 / 300 / 1150 mm
B axis 1 degree
C axis
Spindle speeds 35 - 3500 rpm
Spindle nose A2-8
Spindle bearing diameter 80 mm
Spindle power 15 / 11 kW

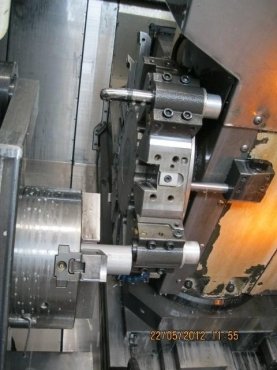

Turret 12 stations

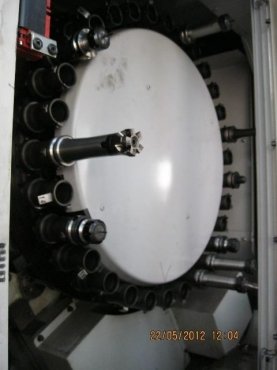

Magazine for driven tools 30 stations
Taper Nr. 40
Rapid traverse X / Y / Z axis 12000 mm/min
Tailstock travel 450 mm
Quill diameter 110 mm
Quill travel 120 mm
Quill taper MK4
Maschine dimensions l x w x h 4123 x 2575 x 2820 mm
Machine weight 12400 kg

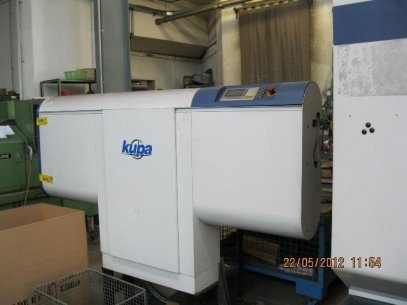

Equipment: programmable tailstock, chip conveyor, coolant, splash guard, 3-jaw power chuck Kitagawa B210, tool probe, parts catcher, bar loader KUPA LM 1500
