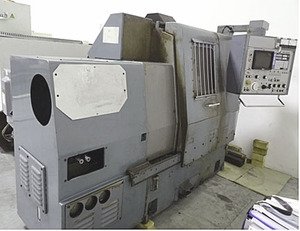

Mori Seiki CNC Lathe , slant bed, model : SL-1 with Yasnuc LX-1 control
Specifications:
MORI SEIKI
CNC SLANT BED LATHE
MODEL : SL-1

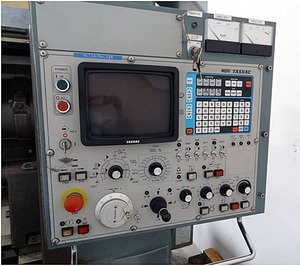

WITH YASNUC LX-1 CONTROL
Max Swing Over Bed / Carriage 16.5" / 6.2"
Max Turning Diameter 4"
Max Machining Length 9.4"
Spindle Motor 10 / 7.5 HP AC
Spindle Speed 130 - 4000 RPM
Spindle Bore 1.57"
Max Diameter Bar Capacity 1.3"
Spindle Nose A2-5

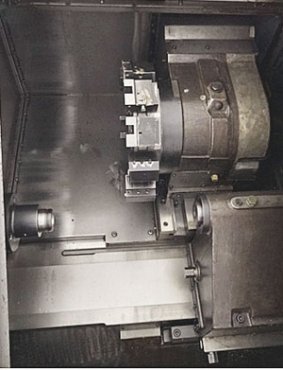

TURRET : 12 STATION
Rapid Traverse Rates (X / Z) 157 / 315 IPM
X-Axis Travel 3.3"
Z-Axis Travel 10.8"
Tailstock Taper MT #3
Machine Dimensions (L x W x H) 90.8" x 59.3" x 64.96"
Machine Weight 5500 lbs.
FEATURES:
5C Collet Chuck
Tailstock
Slant Bed Box Way Construction
