- CNC - control FANUC
- powered tools
- tail stock
- bar laoder Sameca
- coolant unit
- complete equipped with tools

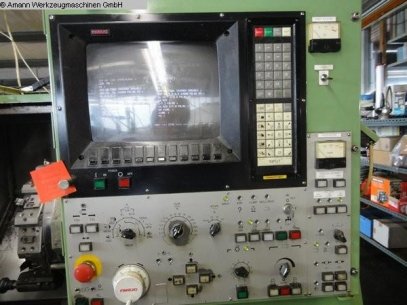

control FANUC
greates pass round over bed 450 mm
swing diameter over slide rest 300 mm
turning length 525 mm
rapid power traverse in X-and Z direction 12/15 m/min
Travel x/z 222 / 560 mm
bar material dia. 42 mm

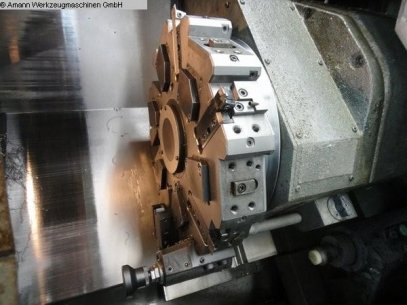

Turret positions 12 / 6
tailstock quill diameter 75 mm
Tailstock Travel 450 mm
hob turning speeds 100 - 2000 U/min
spindle turning speed range 50 - 5000 U/min
spindle nose JIS A2-5
spindle bore 52 mm
front bearing 90 mm
Turret 1 12 (6)
rapid travel - longitudinal/face 15 / 12 m/min
total power requirement 25 kW
weight of the machine ca. 3,3 t
dimensions of the machine ca. 2,50 x 1,40 x 1,90 m
