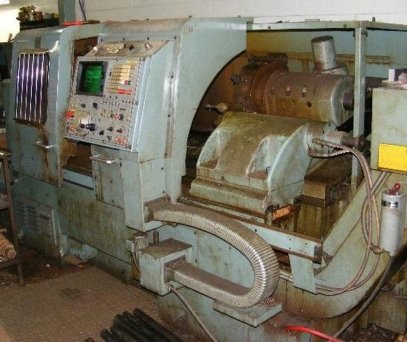

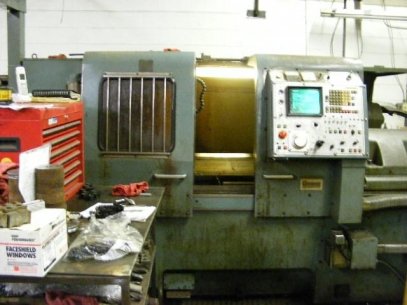

Mori Seiki Model TL-5A 18" x 40" CNC Lathe

Maximum swing 18"
Swing over carriage 14.9"
Distance between centres 40"
Maximum cross travel 9.25"
Spindle nose A2-8
Spindle taper 7 MT
Spindle bore 3"
Spindle speeds 17-2000RPM
Tailstock quill diameter 4.33"
Tailstock taper 4 MT
Main moter 25 HP
Electrics 220/3/60

Equipped with:

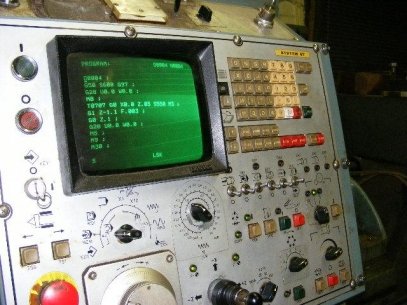

-Fanuc 6-T control
-10" 3-jaw chuck
-Tailstock
-Chip conveyor

Machine can be seen in operation in a palnt.

Note: Specifications are meant only as a guideline and should be confirmed by customer prior to purchase.

15000 Lbs.
