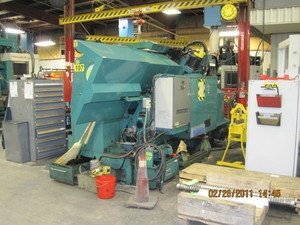

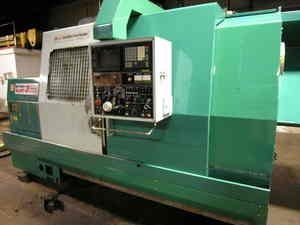

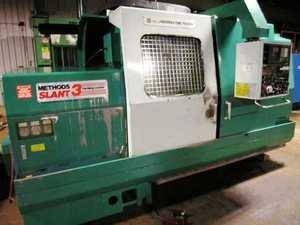

NAKAMURA SLANT BED 3BSL 2-Axis CNC Lathe

Manufacturer: Nakamura
Model: 3BSL
S/N:
Year: 1986
Condition: Excellent

Specifications:
Approximate Machine Age: 1986
Swing Over Bed / Cross Slide 27.16"/18.89"
Maximum Turning Diameter: 15.57"
Max Turning Length: 22.83"
Z Axis Travel 22.83"
X Axis Travel
Distance between centers 28.94"
Spindle Speeds: Two speed ranges 10 to 958 / 35 to 3500
Spindle Motor: 25 HP
Spindle Nose A1/8
Spindle Bore: 3.15"
Max Bar Size 2.5"

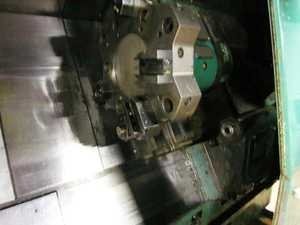

Turret Stations: 12
Tool size: 1" square / 1 ¾" round
Rapid Travels: X and Z X/Z - 295 ipm @ 590 ipm

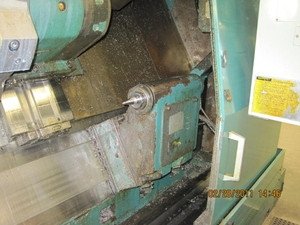

Tail stock quill stroke 3.94"
Tail stock quill diameter 3.54"
Tail stock taper # 3 MT
Dimensions: 92" x 69" x 80"
Approximate Weight: 12,100 LBS


Equipped With:
Fanuc 11TE controls

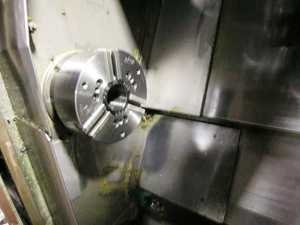

12" 3-jaw chuck
Cartridge type spindle

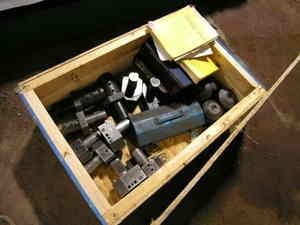

Turret tooling
All Avilable Tooling and Manuals

120 x 69 x 80

12,100
