Parts catcher, LNS Quick Load BF, Collets, spindle liners, chuck, collet nose, tool holders. This is a Turn Key machine.

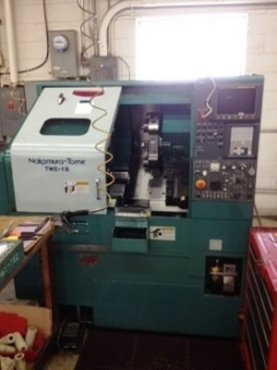

NAKAMURA TMC 18 2-Axis CNC Lathe

Manufacturer: Nakamura
Model: TMC 18
S/N:
Year: 1998
Condition: Excellent

Specifications:
Approximate Machine Age: 1998
Swing Over Bed / Cross Slide 15.74"
Maximum Turning Diameter: 11.02"
Max Turning Length: 12.00"
Z Axis Travel 12.0"
X Axis Travel 10.0"
Spindle Speeds: Two speed ranges 50-4500 RPM
Spindle Motor: 15 HP
Spindle Nose A2/6
Spindle Bore: 2.28"
Max Bar Size 2.0"
Turret Stations: 10
Rapid Travels: X and Z
Dimensions: 92" x 69" x 80"
Approximate Weight:


Equipped With:

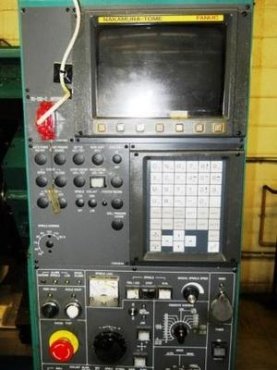

Fanuc OTC Control

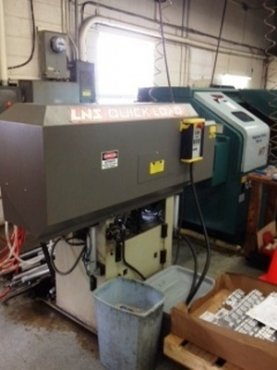

LNS Quick Load Bar Feeder
8" 3 jaw chuck

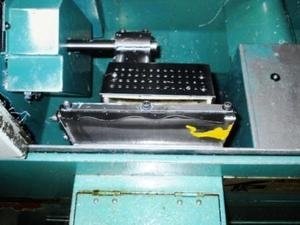

Parts Catcher
Collet Chuck ATS 16C

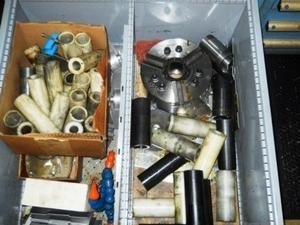

large amount of Collets

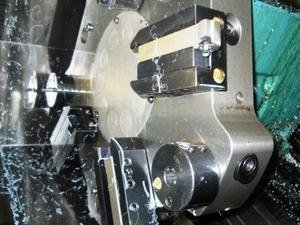

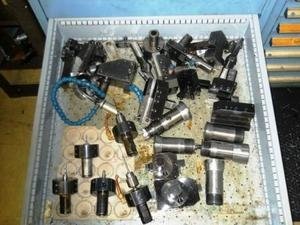

large amount Turret tooling
spindle liners
All Avilable Tooling and Manuals
(NO TAIL STOCK)

This machine is available for demonstration under power at your convenience.

64" X 58" X 64"

5,300.00
