Max.turning diameter /Max. turning lenght 335mm/300mm

Distance between spindle nose Max.1300mm/ min.320mm

Bar capacity 71mm

Chuck size 10"254mm

Slide travel X1/X2 265mm/265mm

Slide travel Z1/Z2 350mm/980mm

Slide travel Y1/Y2* ±70/±70

Spindle speed 3600min-¹

Left spindle motor 22/18.5kW(30/22kW)*

Right spindle motor 22/18.5kW

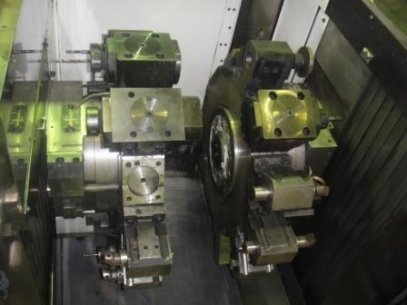

Number of turrets 2

Type of turret head/Number of index positions Dodecagonal/12

Spindle speed 3600min-¹

Driven motor power 5.5kW/3.7kW

Rotary system/Number of driven-tool stations Individual rotation/12

Floor space (LxWxH) 4370x2125x2250 mm

-

10820kg
