technical details

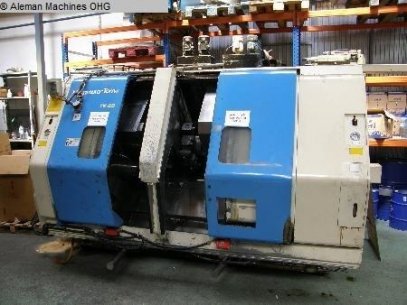

CNC Lathe
technical details:
turning diameter 165 mm
turning length 200 mm

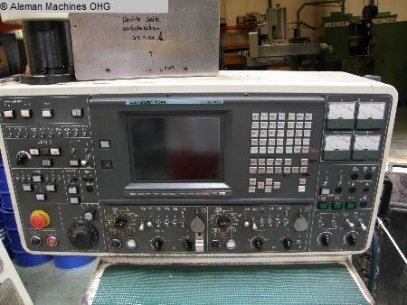

control Fanuc 18 TB
x-axis 2 x 195 mm
z-axis 265 (B 780) mm
bar passage 65 mm /sub-gegenspiendel 52 mm
y-axis +- 40 mm
rapid taverse Z/Y: 12/24 m/min
c-axis 0,001 °
Turning speeds: 50 - 5.000 U/min
Drive 18,5 kW
opposed spindle
tool turret with 12 work positions 2 x 12 Angetriebene
Turning speeds: Angetr.Werkzeuge180-3600 U/min
Drive 1,5 kW
weight of the machine ca. 9 t
dimensions of the machine ca. L/B/H: 3,100 x 1,8 x 1,9 m
accessories:
Chip conveyor
Parts catcher
Subject to alterations ( prior sales and errors exepted).

-
