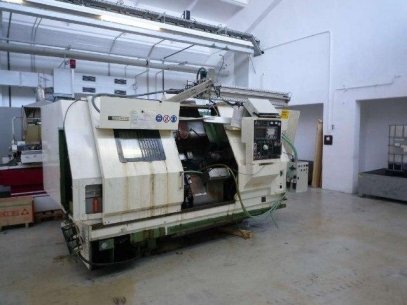

Type of Machine : CNC Lathe with live tooling

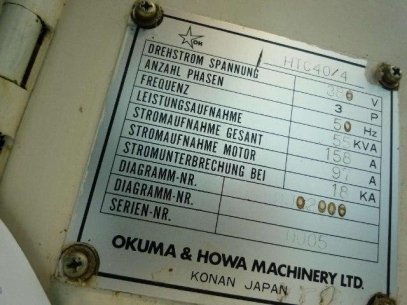

Make : Okuma Howa
Type : HTC 40/4
Year of Manufacture : 1997

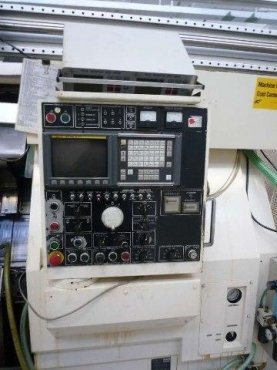

Control : Fanuc OTT
Technical Details
Text Dimension Unit
Max. Turning dia. 390 mm
Max. Turning length 730 mm
Swing over bed 540 mm
Chuck size 250 mm
Spindle Indexing 0.001° mm

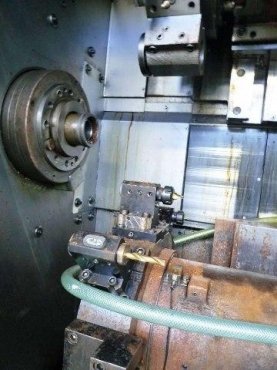

Revolver 12 + 8 mm
No. live tooling positions 6 mm
Spindle speed 35 - 3500 rpm
Spindle passage 77 mm
Power capacity 22/30 kW
apporx. machine weight 7 tons
Accessories/Additional:
- 5- axis; with sub spindle

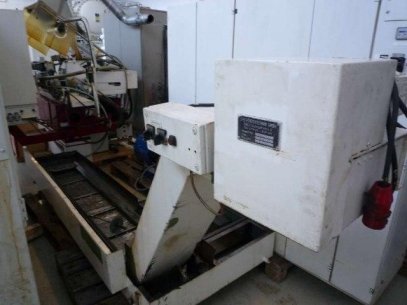

- With Chip conveyor
- Documentations
- AC spindle and servo motors
