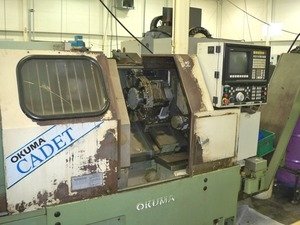

10" Hydraulic Chuck, Tow-Along Tailstock, Chip Conveyor (Side Exit), Heavy Duty Box Way Construction
Specifications:
Chuck Size 10"
Max Diameter Bar Capacity 2.5"
Max Swing Over Bed 15.75"
Max Turning Diameter 9.84"
Spindle Motor 15 / 10 HP AC
Spindle Speed 65 - 3500 RPM
Spindle Bore 3.15"
Spindle Nose A2-8
Spindle Torque 290 ft. lbs.
Tools 12
Rapid Traverse Rates 472 IPM
X-Axis Travel 6.89"
Z-Axis Travel 20.47"
Turret Index (Single Step) 0.9 Seconds
Tailstock Taper MT#4
Machine Dimensions (L x W x H) 107" x 73" x 62"
Machine Weight 9670 lbs.
FEATURES:
OKUMA OSP 5020 CNC CONTROL
Serial Number B648
10.4" Monochrome LCD
10" Hydraulic Chuck
IGF Function
Graphic Display
Lap 4
Tow-Along Tailstock
Chip Conveyor (Side Exit)
Expanded Auto Chamfering
NC Torque Limiter
Tape In / Out for Tool Offsets
Tool Nose Radius Compensation
Inch / Metric Switchable
Heavy Duty Box Way Construction
