Okuma Cadet LNC-8, OSP-5020L, Collet Chuck, 2.2" hole, chip conveyor

General Specifications as per Brochure

Specifications:
Bore Diameter: 2.2"
Swing Over Bed Max: 15.75"
Turning Diameter Max: 9.84"
Turning Length Max, Chuck Work: 9"
Turning Length Max, Shaft Work: 19.69"
X-Axis Cross Slides Travel Below
Centerline: 5.12" & 1.77"
Z-Axis Carriage Travel: 20.47"
Spindle Speeds Range: 75 to 4200 RPM
Cutting Feedrate Range: 01 to 40 IPM
X-Axis Thread Feed Max: 236 IPM
Z-Axis Thread Feed Max: 354 IPM
Rapid Traverse Rate, X & Z-Axis: 472 IPM
Spindle Motor Horsepower: 10 HP
Floor Space Required: 8'10" x 6'1"
Weight Approximately: 10000 Lbs
Equipped With:

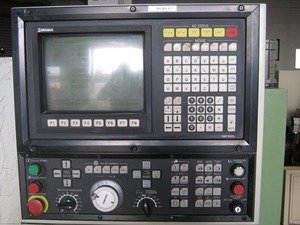

OSP 700L Control
IGF
Chip Conveyor
Collet Chuck
Operations/Programming/Maintenance/Control Manuals

Machine: 10' x 6' x 8' 10,000 lbs
Chip Conveyor: 9' x 2' x 4' 1,500 lbs
Sameca Box: 42" x 25" x 26" 200 lbs

8'10" x 6'1"

10,000 lbs
