Specifications:
Chuck Size: 10"
Swing Over Saddle 16.54"
Max. Cutting Diameter: 16.53"
Max Turning Length: 49.21"
Spindle Speeds: 65-3500 RPM
Gear Box YES
Spindle Motor: 40/30
Spindle Nose A2/8
Spindle Bore: 3.15"
Max Bar Size 2.65"
Turret Configuration - Upper: 12 Tools Bidirectional
Turret Configuration - Lower: 10 Tools Bidirectional
Z- Axis Head One Travel 52.16" Upper/ 50.00" Lower
X- Axis Head One Travel 11.81 Upper/ 7.68"Lower
Rapid Travels: X , Z X : 591 / Z: 787 IPM
Quill Type Quill MT# 5
Quill Diameter / Stroke (3.94") / Stroke: (5.91")
Dimensions: L X W X H 171" x 100" x 86.61"
Approximate Weight: 18,700 LBS
Equipped With:

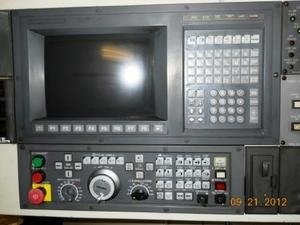

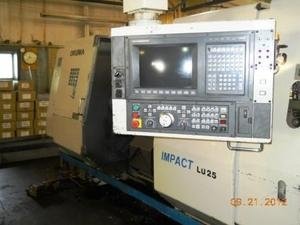

Okuma OSP 700L CNC Control

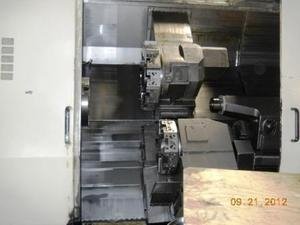

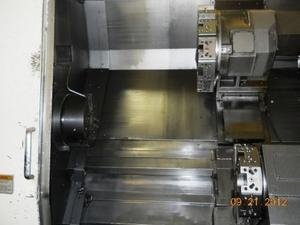

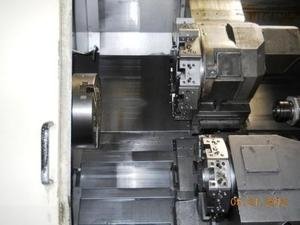

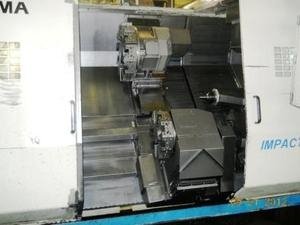

Twin Turret Design
Lift-up Chip Conveyor

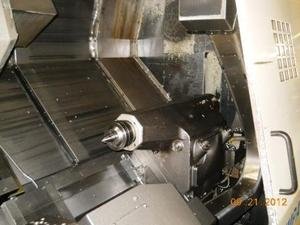

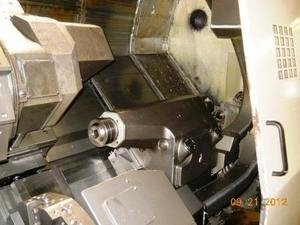

Programmable Tailstock w/ Live Quill
10" Kitagawa 3-Jaw Chuck
Transformer
Solid Box-Way Construction
All Available Manuals
Cycle time Reduction
60 Meters of Mem.
Turret Pos. Compensation
Tool Life Management
NC Torque Limit
Animation
NC Work Counter
Mac Man
LAP 4
Nose-R 2B
User Task 2
EXP. Auto Chamfer
Cycle Time Calculation
Spindle Orientation
Chuck Open Close Conformation
Auto Door
This machine is available for demonstration under power at your convenience.
