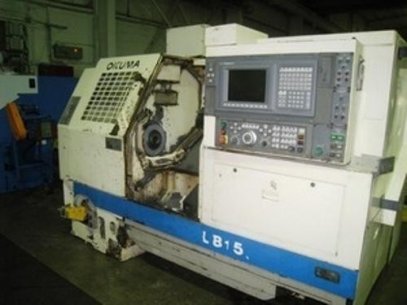

1994 Okuma LB-15 CNC Lathe Turning Center 2-Axis

GENERAL SPECIFICATIONS:

Between centers 500mm (19.69")
No. of controlled axes 2
Swing over bed 530mm (20.87")
Swing over carriage 530mm (20.87")
Swing over cross-slide 340mm (13.39")
Distance between centers 520mm (20.47")
Max. turning diameter 250mm (9.84")
Spindle:
Spindle diameter 100mm (3.94")
Spindle nose type JIS A2-6
Taper hole 70mm (2.75") x1/10
Through-spindle hole 62mm (2.44")
No. of spindle speed range 1 Step
Spindle speed 45-4500 RPM
Carriage (Z-Axis)
Axis travel 520mm (20.47")
Feedrate 33.37mm/rev
Rapid feedrate 787.40 IPM
Cross-Slide (X-Axis) 212m (8.34")
Axis travel 2.95"+5.39"
Rapid feedrate 590.55 IPM
Turret Type V12
No. of tools 12
Tailstock:
Tailstock spindle diameter 90mm (3.54")
Tailstock spindle taper hole MT No.5
Tailstock spindle travel 120mm (4.72")
Machine weight (approx) 11,616 Lbs

EQUIPPED WITH:
OSP 7000L CNC Controls
12 Position Turret
Splash guards
Specifications
Chuck Size:10" / 254mm
Bar Capacity:2.440 " / 62mm
# Axis:2
Power:15hp / 11.2 kW
RPM:4200 rpm
Turning Dia:15.750 " / 400mm
Swing:12" / 304.8 mm
Centers:20.470 " / 519.9 mm
Tailstock (Yes/No):No
Dimensions74"x108"x75"
Weight9900 Lbs.
Control:OSP 7000L
