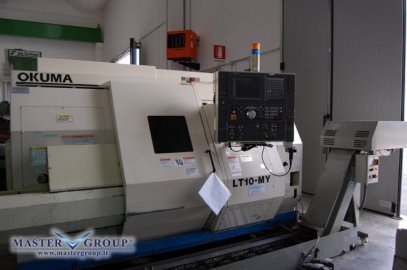

OKUMA LT 10 MY USED 7-AXIS CNC LATHE WITH DOUBLE TURRET HEAD and BAR LOADER
Specifications:
YEAR: 2000
DISTANCE BETWEEN CENTRES: 960 mm
MAX TURNING LENGTH: 130 mm
MAX TURNING DIAMETER: 210 mm
BAR PASSAGE: 65 mm
SPINDLE : 50-4800 rpm; 5,5 - 7,5 Kw
COUNTER SPINDLE: 50-4800 rpm; 5,5-7,5 Kw
X1-AXIS TRAVEL: 167 mm
X2-AXIS TRAVEL: 192 mm
Y-AXIS TRAVEL: 50/-30 mm
Z1-AXIS TRAVEL: 700 mm
Z2-AXIS TRAVEL: 730 mm
RAPID FEEDS X-Y-Z: 15-6-20 m/min

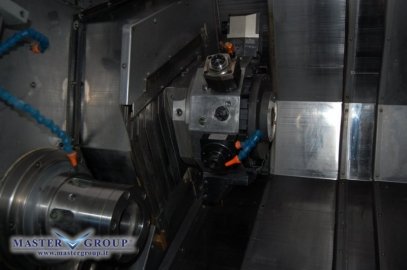

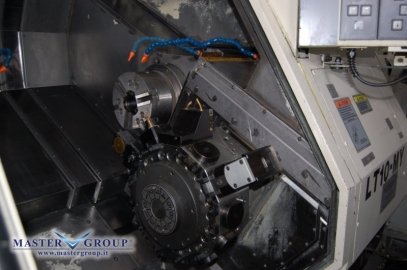

DRIVEN TURRET HEAD: 12 + 12 POS; 50-6000 rpm; 1,1-2,2 Kw

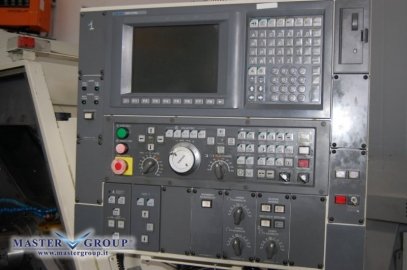

CONTROL UNIT: OSP-U100L

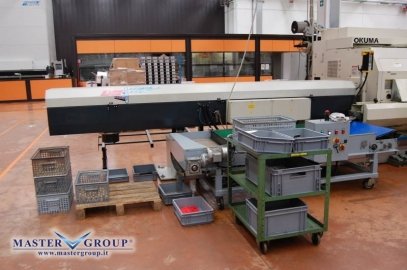

BAR FEEDER: LNS mod. SPRINT S2
BAR DIAMETER: 65 mm
BAR LENGTH: 3000 mm
ACCESSORIES: SWARF CONVEYOR; PIECE CONVEYOR; PORTABLE HANDWHEEL
NOTE: WITH No 3 RADIAL AND No 3 AXIAL TOOLS
