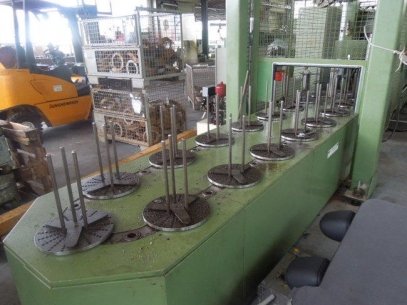

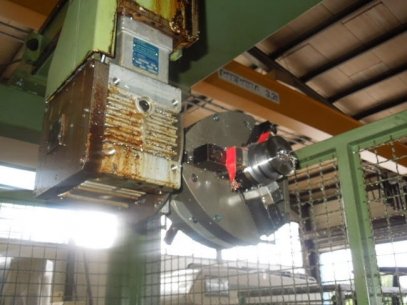

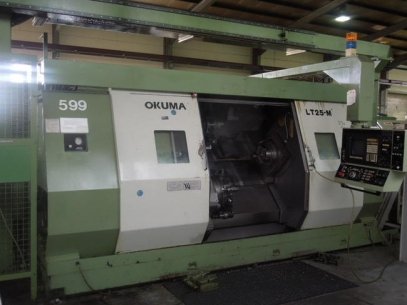

Year: 1997 Swing over bed: 650mm Drehdruchmesser over carriage: 250mm turning length: 1400mm Turning diameter: max. 300mm Spindle nose JIS A2-8 spindle bore: 80mm gear stages: 2 Speed: 38-3800 1/min rapid traverse: 20m/min C-axis: 0,001 Speed: max. 200 1/min Driving power: 30/20 kW Turret: 2x12, all powered Weight: approx 12to features: Pneumotec Beladeportal with double gripper chip conveyor Renishaw probe spindle 2x250mm Forkardt feed coolant system, the machine is plugged in and can be visited at any time gladly. Because the machine is delivered with portal set-up time is too high for the batches to be produced.
