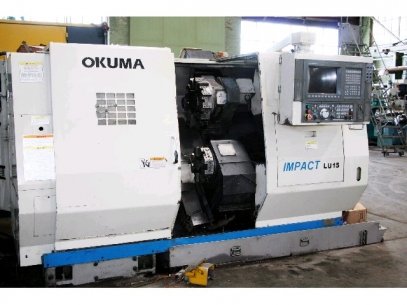

Okuma Impact LU15-2ST/350 4-Axis CNC Turning Center

Chuck Diameter 10"
Maximum Swing over Saddle 14.96"
Maximum Turning Diameter 14.17"
Maximum Worklength 9.84"
X-Axis Travel Upper Turret 7.08" + 3.14"
X-Axis Travel Lower Turret 4.13" + 1.37"
Z-Axis Travel Upper Turret 25.2"
Z-Axis Travel Lower Turret 24.21"
Spindle Nose A2-6
Spindle Bore 2.44"
Spindle Speed Ranges (4) 75-4500 RPM
Spindle Motor 30 min/Continuous 30 HP / 20 HP
Number and Type of Turret 2-Turret / VDI
Number of Tool Positions Upper Turret 12-Position
Number of Tool Positions Lower Turret 8-Position
Rapid Traverse X-Axis 591 IPM
Rapid Traverse Z-Axis 787 IPM
Approximate Weight 10,500 lbs
