Okuma LU-15 CNC lathe – 2002 . Upper and Lower turrets. OSP U100L Control

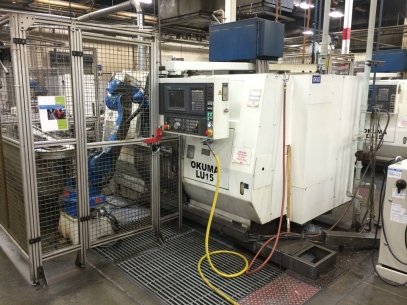

Okuma LU-15 CNC lathe – 2002 . Upper and Lower turrets. OSP U100L Control with Robots
CATALOGUE SPECIFICATIONS:
Max Swing Over Slant Bed .................................... 22"
Max Turning Diameter......................................... 14.17"
Max Machinable Center Distance............................... 23.62"
Cross Travel (X-Axis) Upper Slide Above Center....... 11.6"
Lower Slide Below Center ...... 7.6"
Longitudinal Travel (Z-Axis) Upper Slide.................... 29.6"
Lower Slide ................... 21.4"
Feed Range X & Y-Axis (Infinetly Variable) .................. 400 IPM
Rapid Traverse Rate X & Y Axis .............................. 400 IPM
Tool Positions (12-Upper & 8-Lower).......................... 20 Total
Spindle Speed Range ......................................... 4500
Spindle Horsepower........................................... 30 HP
Approximate Machine Dimensions............................... 189" x 78"
Approximate Machine Height................................... 79"
Approximate Machine Weight................................... 24,000 LBS
