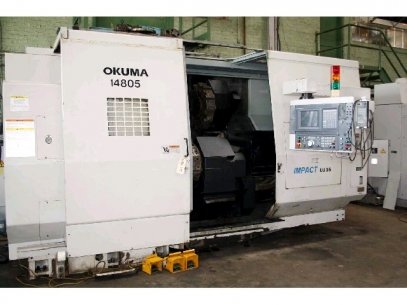

LU35-2SC/850 Okuma 4-Axis CNC Turning Center

Maximum swing over bed 29.13"
Maximum swing over carriage 18.90"
Maximum turning diameter - upper turret 21.65"
Maximum turning diameter - lower turret 14.17"
Travel XA - upper turret 14.96" (10.83"+ 4.13")
Travel XB - lower turret 9.84" (7.09" + 2.76")
Maximum ZA travel - upper turret 36.22"
Maximum ZB travel - lower turret 34.44"
Maximum work length - upper turret 36.22"
Spindle nose type A2-8
Spindle bore 3.54"
Spindle speeds 14-3200 RPM
Spindle drive 50 HP/40 HP
Turret type - upper/lower NC-V12/V10 Slotted
No. of tool stations - upper turret 12 (ID or OD)
No. of tool stations - lower turret 10 (OD or OD)
Rapid traverse rates - X-axis 591 IPM
Rapid traverse rates - Z-axis 787 IPM
Feed rates for X & Z-axis .000040 - 39.3700 IPM
Tailstock quill taper No. 5 MT
Quill diameter 4.72"
Quill stroke 6.69"
Approximate weight 30,000 lbs
Machine height 8'6"
