Description:
2 Saddle-Dual Turret, Gantry Loadr Interface, Programmable Tailstock
Specifications:

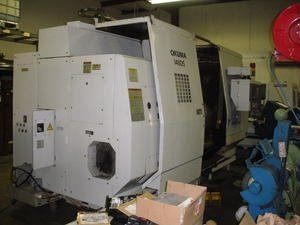

USED 4 AXIS TWIN TURRET CNC TURNING CENTER
Make: Okuma Year: 1995
Model: LU35-2SC/850 Condition: Average
SPECIFICATIONS
Swing Over Bed Ways 29.13”
Swing Over Cross Slide 18.9”
Maximum Turning Diameter (Upper Turret) 21.65”
Maximum Turning Diameter (Lower Turret) 14.17”
Maximum Work Length 36.22”

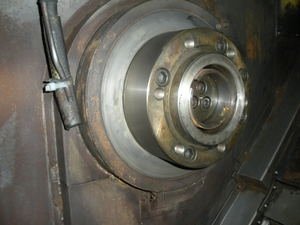

Spindle Bore 3.54”
Spindle Nose A2-8
Rapid Traverse Feed Rate (X-Z) 591/787 IPM
Spindle Horsepower 50 Hp
Spindle Speed (Constant Surface Speed) 14 – 3,200 RPM

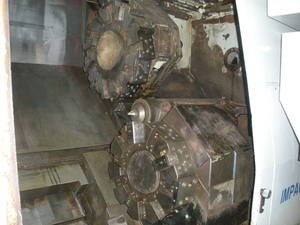

Number of Tools in Turrets (Upper/Lower) V12/V10
Tailstock Quill Diameter 4.72”
Tailstock Quill Stroke 6.69”
Tailstock Quill Taper 5 MT
Control OSP7000L
Machine Weight 30,000 lbs.
INCLUDES: 2 Saddle Machine, Electric Spindle Orientation, Cycle Time Reduction, OMI Message, 60M Expanded
Memory, Turret Position Comp., Tool Life Management, Programmable Tailstock, Turret Air Blow, Chuck Grasp
Conformation, Okuma Gantry System (OGL 30), NC Loader Interface, Coolant System, Chip Conveyor, Manuals.
PRICE $ 99,500.00
Terms: Full payment prior to shipping
Warranty: 30 MDNA Return Privilege
F.O.B.: Chicago, IL
Weight:
30,000 lbs.
