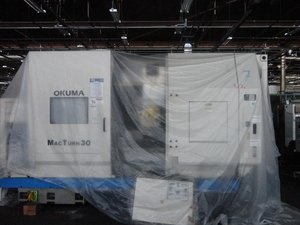

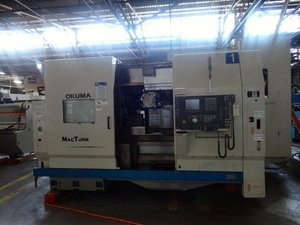

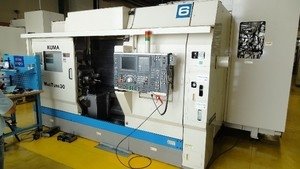

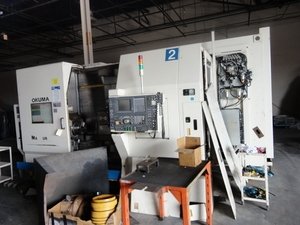

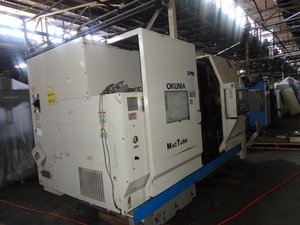

Okuma Mac Turn 30 Multi Axis CNC Turning Center, Mfg. 2003
Specifications:
Max. Swing 21.65"
Max. Cutting Dia. 21.65"
Max. Distance Between Centers 48" From Chuck Face to Face of Tail Stock
Max. Work Length 48"
Spindle Bore
Spindle Nose A2-6
Standard Bar Capacity 2.0"
Spindle Speeds 35-5000 RPM
Spindle Rotation Angle 0.001 Degree
Spindle Horsepower 30/20 HP
Type of Turret 1 position W/ATC
Type of Turret Tool Holders BT #40
Magazine Capacity 80 ATC
Max. Tool Dia W/ All Pockets Full 3.54"
Max. Tool Dia. W/ Adjacent Pockets Empty 4.72"
Max. Tool Length 9.84"
Max Tool. Weight 15 lbs.
Rotary Tool Spindle Speeds 6,000 RPM
Rotary Tool Spindle Horsepower 10 HP AC
Rotary Tool Torque 46 FT/LBS.
Y-Axis Travel +/-3.75"
X- Axis Travel 46.06"
B- Axis Travel -30 to 195 deg
Rapid Traverse Rate (Y/X/Z) 1024/1181/1575 IPM
Machine Weight 30,275 lbs.

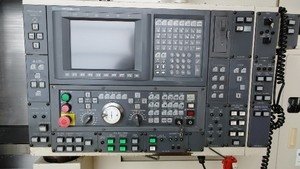

Equipped with: Okuma OSP U100L Control, Rear or Front Exit Chip Conveyor
Renishaw Probe, in Process Gauging,Tailstock
