Swing over bed 19.69"
Distance between centres 40"
Travel-X 10.04
Travel-Z 39.37
Spindle nose A2-6"
Spindle bore 2.5"
Spindle speeds 4 - 3500 RPM
Feed-X 295.3 IPM
Feed-Z 472.4 IPM
Bed width 13.4"
Tailstock taper 4 MT
Tailstock quill travel 4.72"
Main motor 10 HP
Electrics 220/440/3/60
Floor space 59.1" x 93.9"
Equipped with:

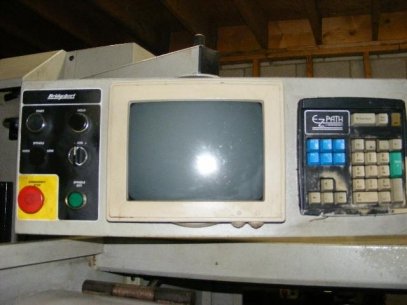

-EZ Path II control
-Apron with 2 electronic handwheels and spindle motor speed control switch for manual operation
-Auto lubrication for saddle and cross slide
-Coolant system
-Chuck guard
-Front and rear splash guards
-Removable chip box
-Quick change toolpost with holders
-3-jaw chuck
-Manuals
