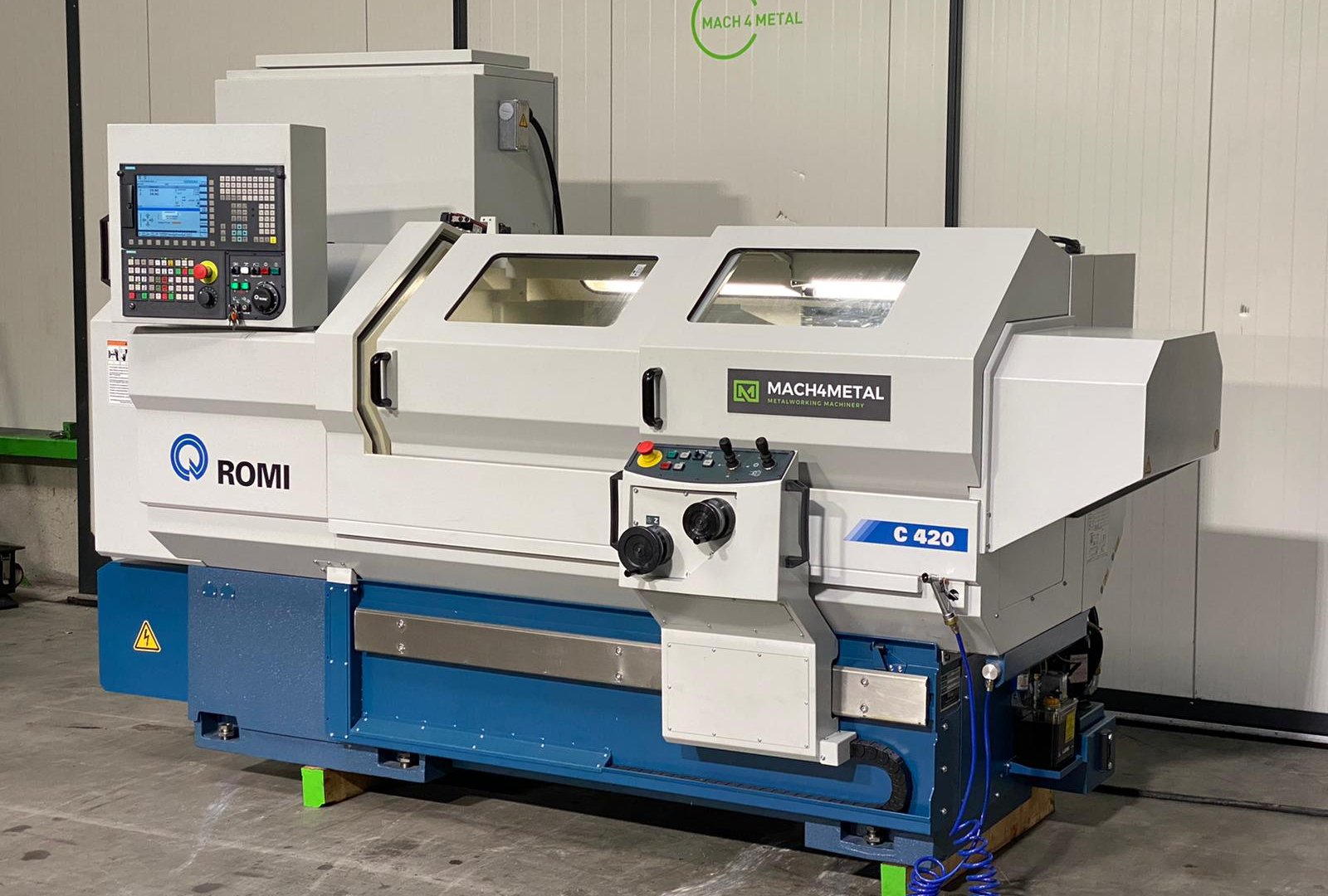

CNC turning lathe Romi - C420 Teach-in Cycle lathe Ø 420 x 1000 mm 6311 = Mach4metal
Swing over bed Ø 430 mm
Swing over cross slide Ø 200 mm
DBC Turning Length 1.000 mm
Spindle bore 53 mm
Spindle power 9 kW
Bed width 350 mm

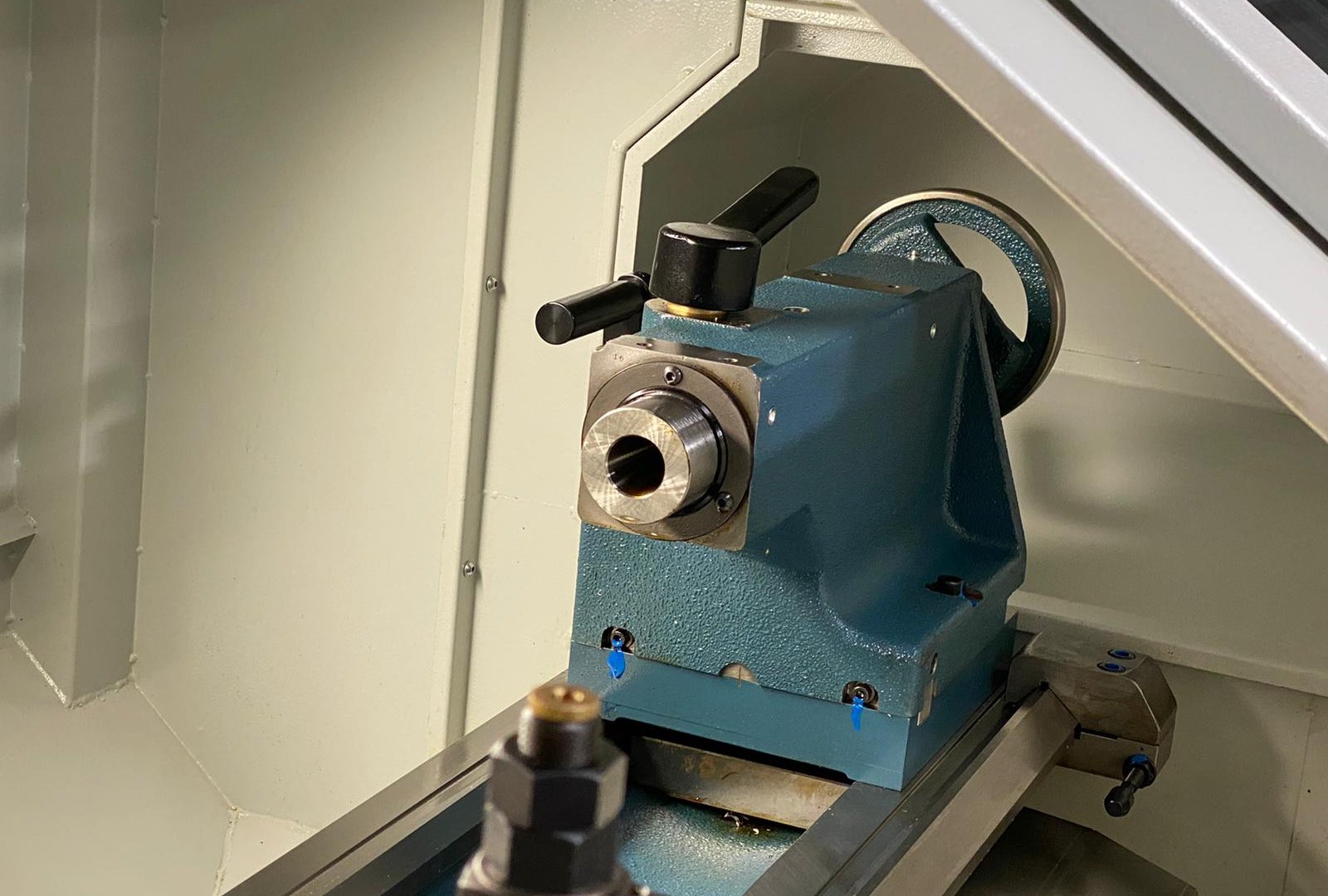

Tailstock spindle Ø 60
Stroke pinole 120 mm
Spindle taper 4 Mk
Power 9 kW
Speeds / ranges 4000 Rpm
Feed rate X-Axis 10.000 mm
Feed rate Z-Axis 10.000 mm
Hour 192

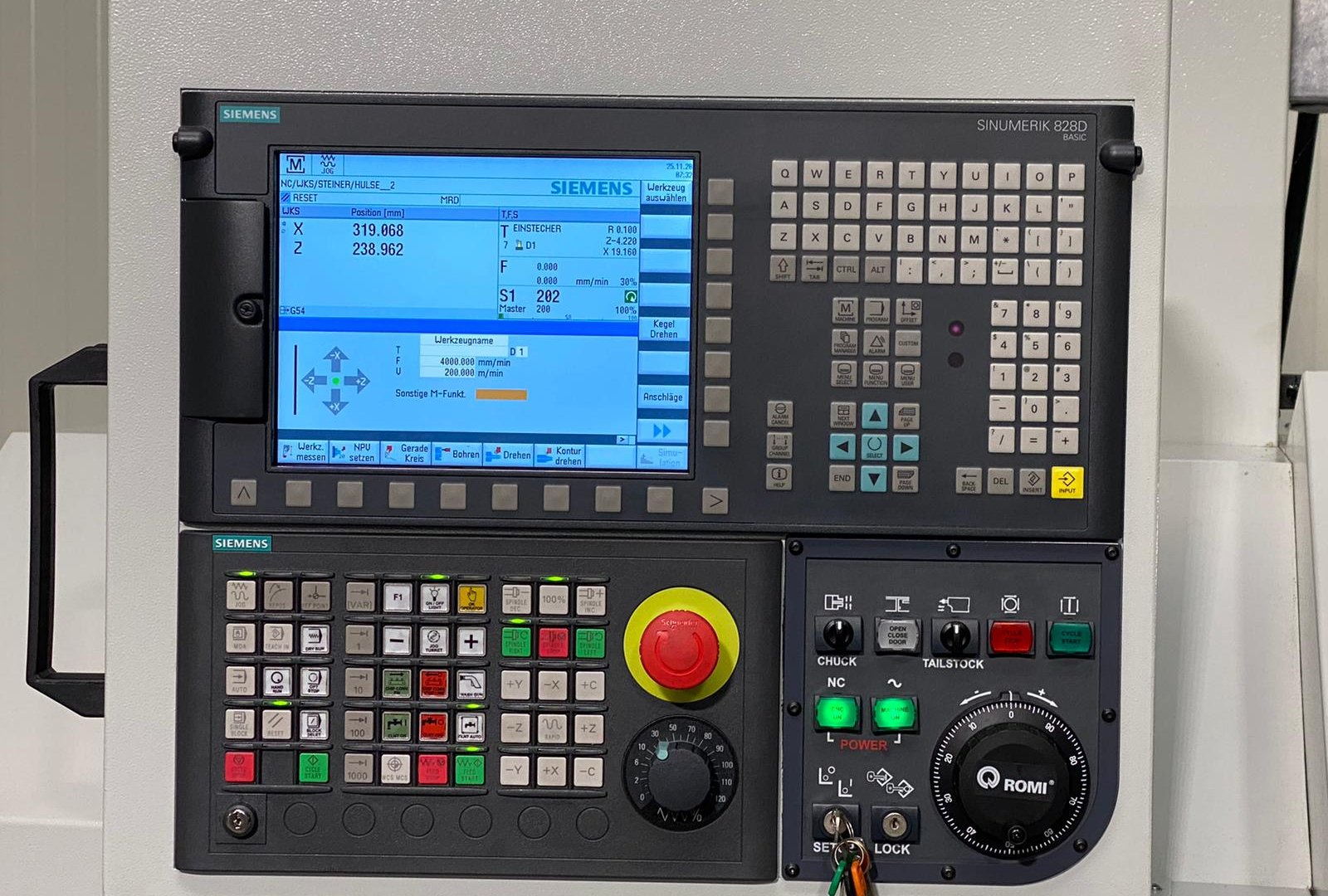

CNC Siemens 828D
Conventionel manual turning
Cycle turning point to point
CNC ISO jobs
