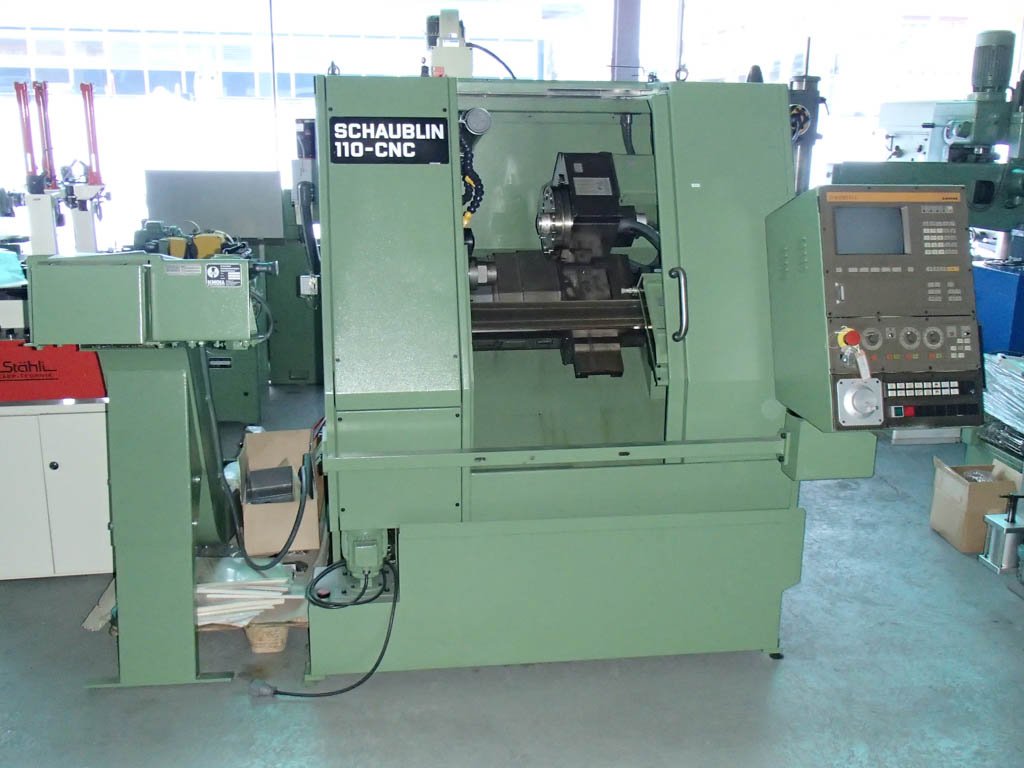

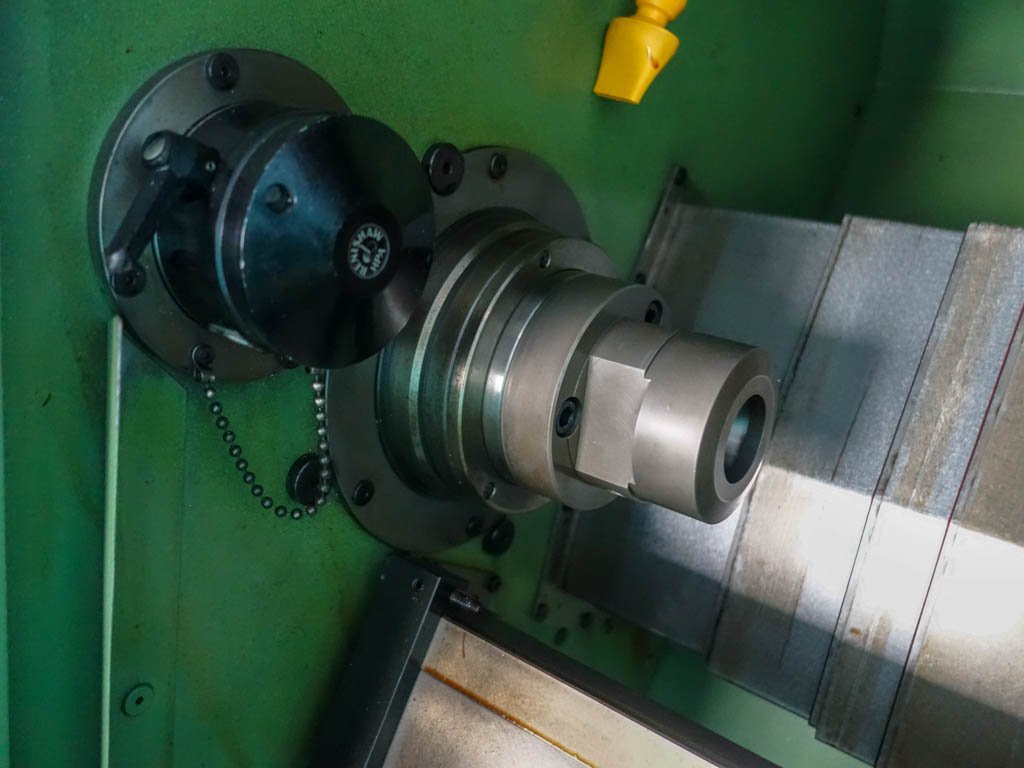

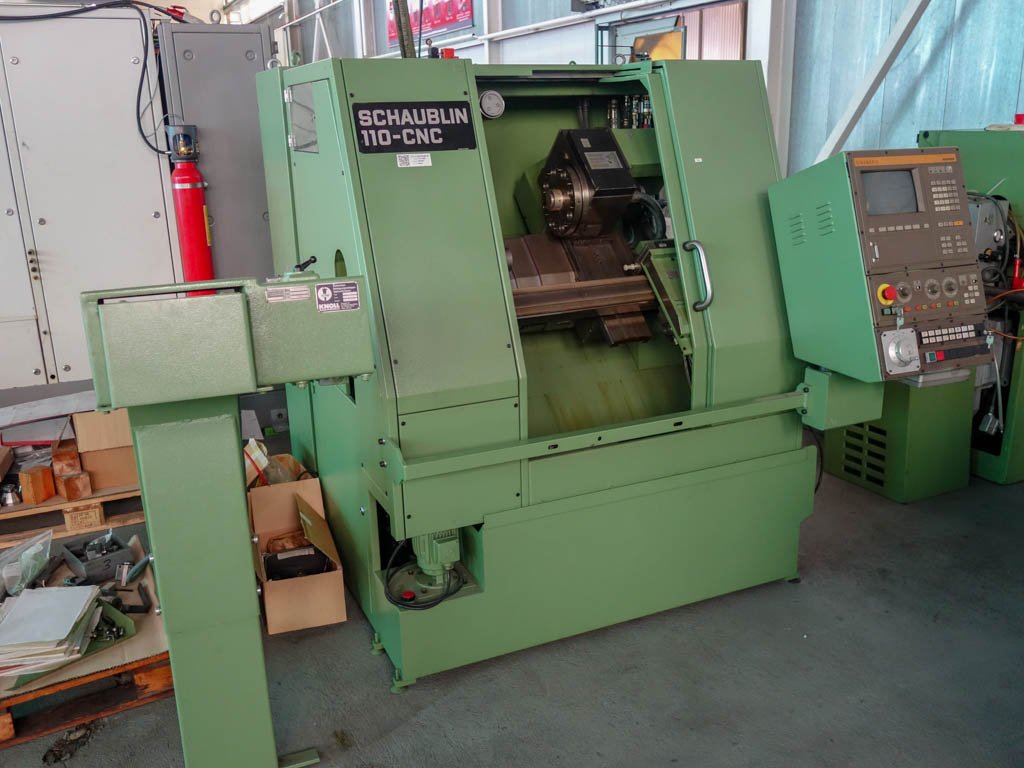

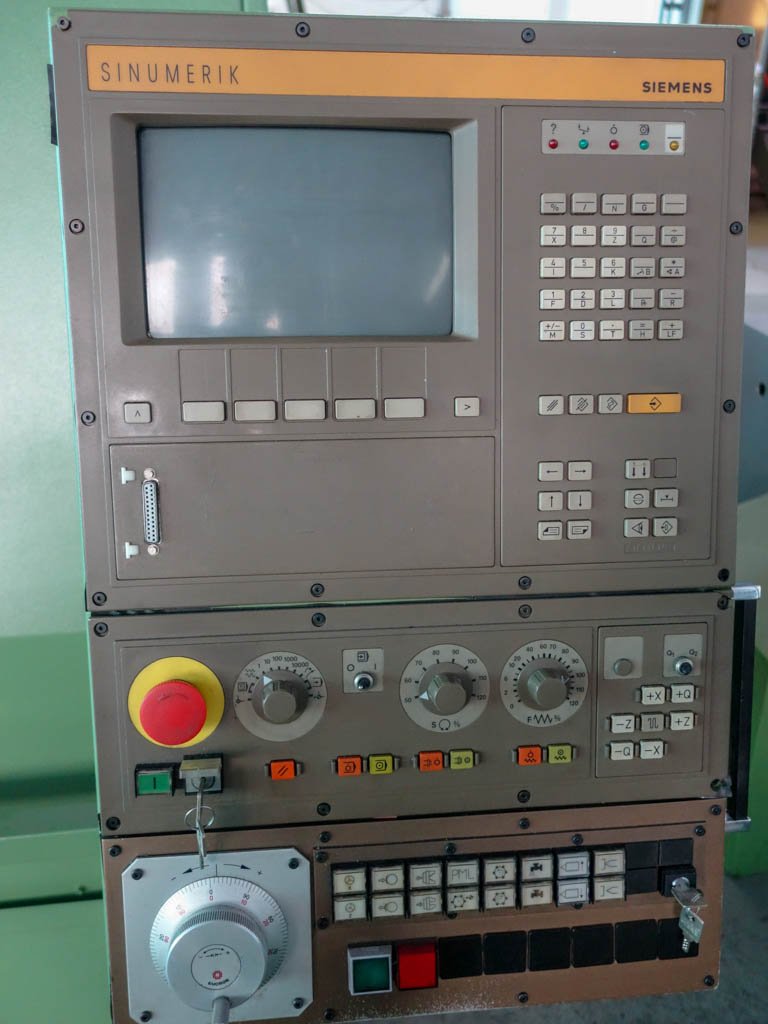

Capacities - Maximum swing over the carriage: 115 mm - Maximum distance between centres: 300 mm - Headstock 110-36.00 - Spindle for collets: F38 - Maximum troughbore: Ø 32 mm - Spindle drive - Spindle power: 5.5 KW - Maximum torque: 30 Nm - Spindle speed: 30-6000 t/min - Carriage - Range Z: 300 mm - Range X: 220 mm - Turret - Number of tool stations: 8 - Rotating tools speed: 0-5000 t/min - Feeds - Working feeds Z/X: 0-5000 mm/min - Rapid feeds Z/X: 10/6 m/min - Tailstock - Spindle taper: Morse 2 - Spindle stroke: 100 mm - Adjustable support pressure: 30-120 daN - Composition - Control SIEMENS type SINUMERIK 810 T GA2 - Headstock A2-4 for collets type F38 - Sleeve for collets type F38 allowing external and / or internal clamping,

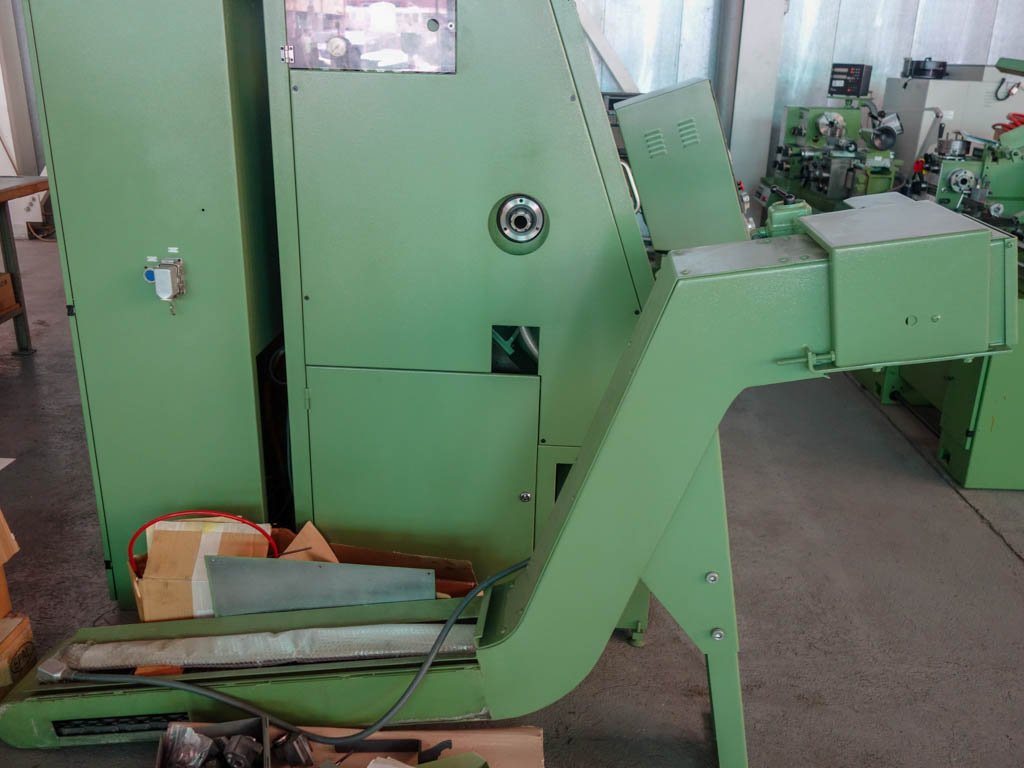

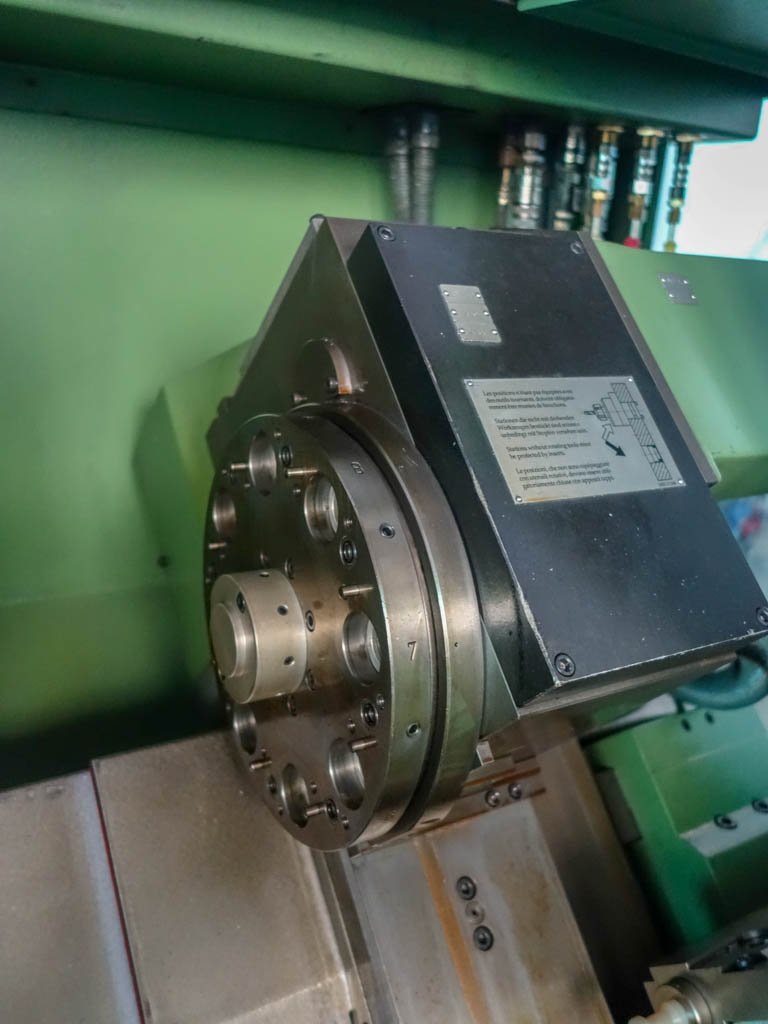

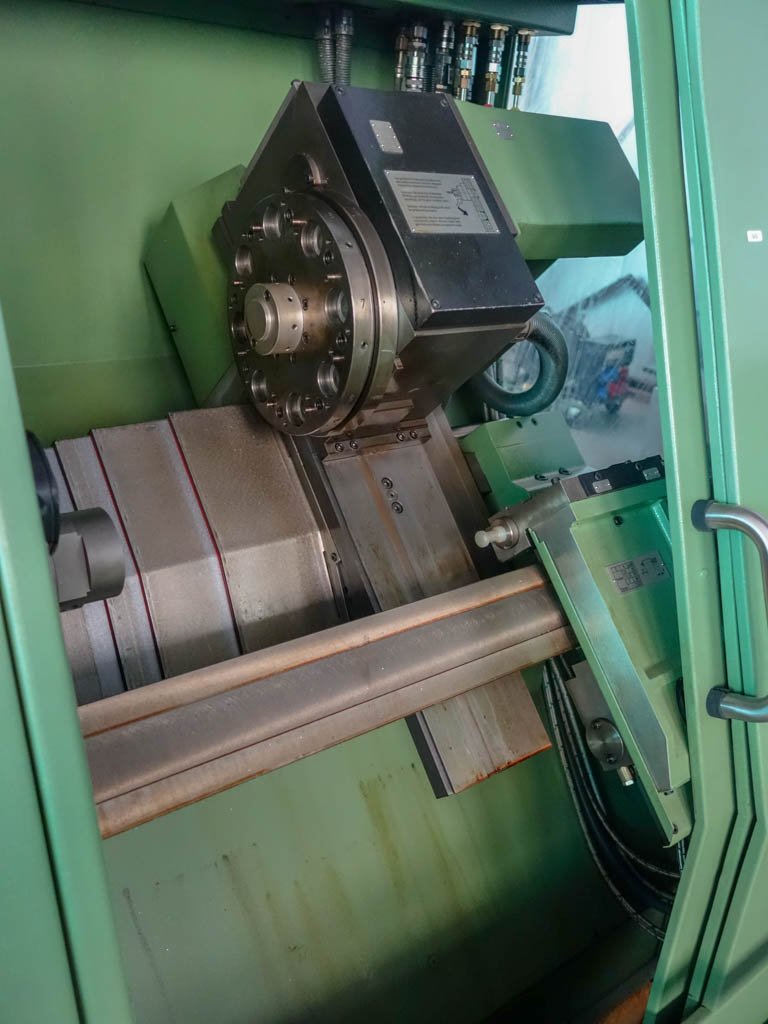

Turret for revolving tools - NEW C-axis (adapted by SCHAUBLIN) - Machine ready for adaptation of pre-setting system RENISHAW - Coolant system complete with swarf conveyor,- NEW tailstock complete, ref. 110-65.000 - Set of 7 various fixed tool-holders - Lamp - Instruction books (original) -
